7) Determine the smallest allowable width d if the 20-1b block shown is to slide rather than tip as P is gradually incre

Post by answerhappygod »

7 Determine The Smallest Allowable Width D If The 20 1b Block Shown Is To Slide Rather Than Tip As P Is Gradually Incre 1
7 Determine The Smallest Allowable Width D If The 20 1b Block Shown Is To Slide Rather Than Tip As P Is Gradually Incre 1 (26.96 KiB) Viewed 7 times

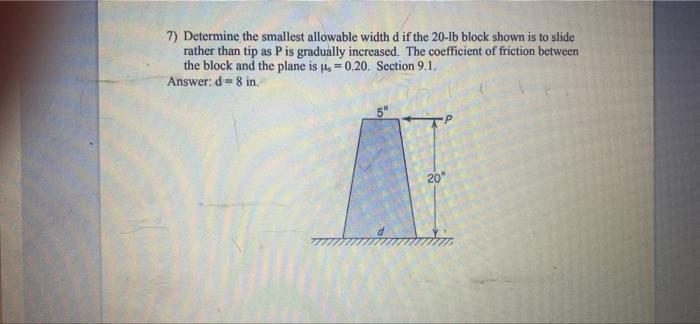

7) Determine the smallest allowable width d if the 20-1b block shown is to slide rather than tip as P is gradually increased. The coefficient of friction between the block and the plane is us = 0.20. Section 9.1. Answer: d = 8 in. 20"
