Problem 2 The end point A of link AD is moving with a speed of VÀI = 2 m/s at the given instant shown below. Determine t

Post by answerhappygod »

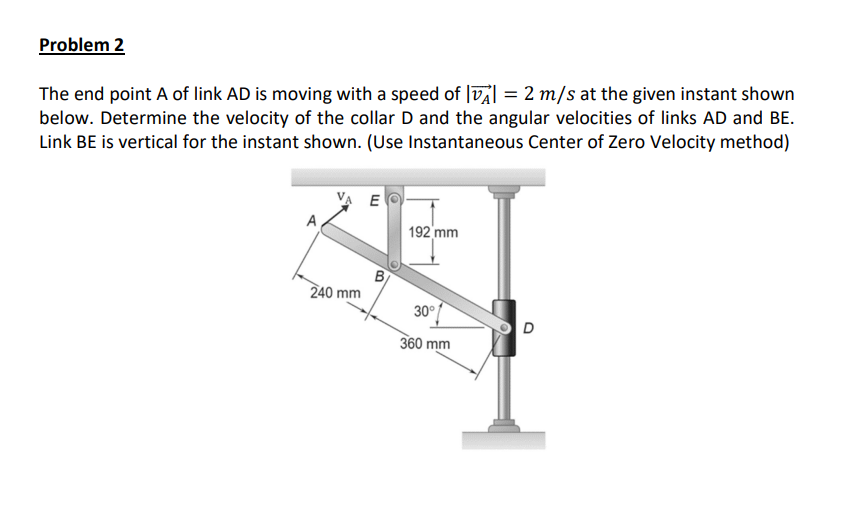

Problem 2 The End Point A Of Link Ad Is Moving With A Speed Of Vai 2 M S At The Given Instant Shown Below Determine T 1
Problem 2 The End Point A Of Link Ad Is Moving With A Speed Of Vai 2 M S At The Given Instant Shown Below Determine T 1 (69.27 KiB) Viewed 8 times
Problem 2 The end point A of link AD is moving with a speed of VÀI = 2 m/s at the given instant shown below. Determine the velocity of the collar D and the angular velocities of links AD and BE. Link BE is vertical for the instant shown. (Use Instantaneous Center of Zero Velocity method) EO А 192 mm B) 240 mm 30° 360 mm D
