Problem 1 A figure of a 6-link mechanism is given below. The link AB rotates with a constant angular velocity w = 2 rad/

Post by answerhappygod »

Problem 1 A Figure Of A 6 Link Mechanism Is Given Below The Link Ab Rotates With A Constant Angular Velocity W 2 Rad 1
Problem 1 A Figure Of A 6 Link Mechanism Is Given Below The Link Ab Rotates With A Constant Angular Velocity W 2 Rad 1 (79.66 KiB) Viewed 13 times

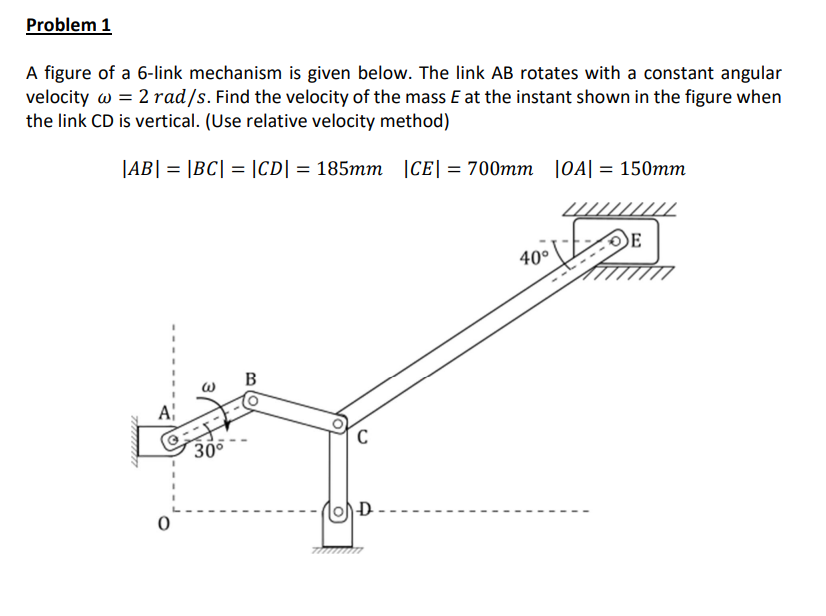

Problem 1 A figure of a 6-link mechanism is given below. The link AB rotates with a constant angular velocity w = 2 rad/s. Find the velocity of the mass E at the instant shown in the figure when the link CD is vertical. (Use relative velocity method) |AB| = |BC| = |CD| = 185mm |CE| = 700mm 10A = 150mm E 40° B A कर С 300 o D
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
