Question 19 3 pts Consider the following closed-loop system R(s) C(s) 24 s(s+2)(s +6) Select the correct gain and phase

Post by answerhappygod »

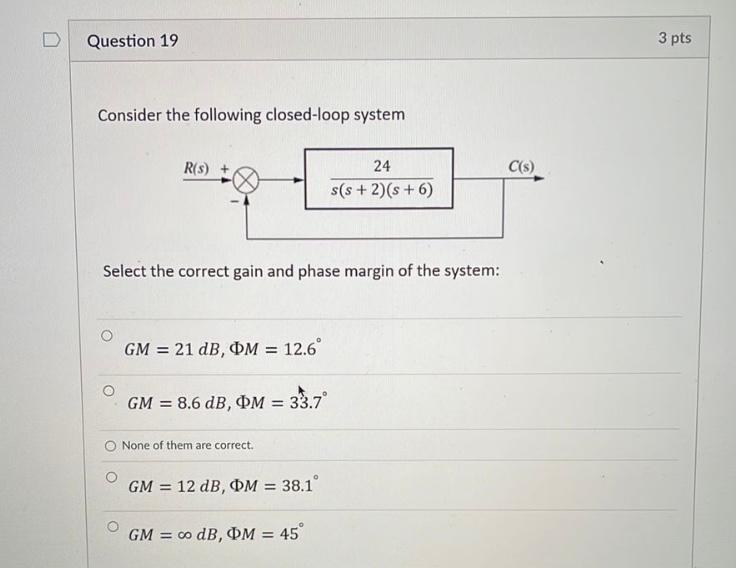

Question 19 3 Pts Consider The Following Closed Loop System R S C S 24 S S 2 S 6 Select The Correct Gain And Phase 1
Question 19 3 Pts Consider The Following Closed Loop System R S C S 24 S S 2 S 6 Select The Correct Gain And Phase 1 (34.71 KiB) Viewed 9 times
Question 19 3 pts Consider the following closed-loop system R(s) C(s) 24 s(s+2)(s +6) Select the correct gain and phase margin of the system: O GM = 21 dB, OM = 12.6° GM = 8.6 dB, ØM = 33.7° None of them are correct. GM = 12 dB, ØM = 38.1° GM = 0 dB, OM = 45°
