- 11 Consider The Feedback Block Diagram Where K 51 And K 1 0 051 Determine Response Y T Due To Unit Step Disturban 1 (47.74 KiB) Viewed 4 times
11 Consider the feedback block diagram where \(K=51) and (K_1=0.051). Determine response y(t) due to unit step disturban
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
11 Consider the feedback block diagram where \(K=51) and (K_1=0.051). Determine response y(t) due to unit step disturban

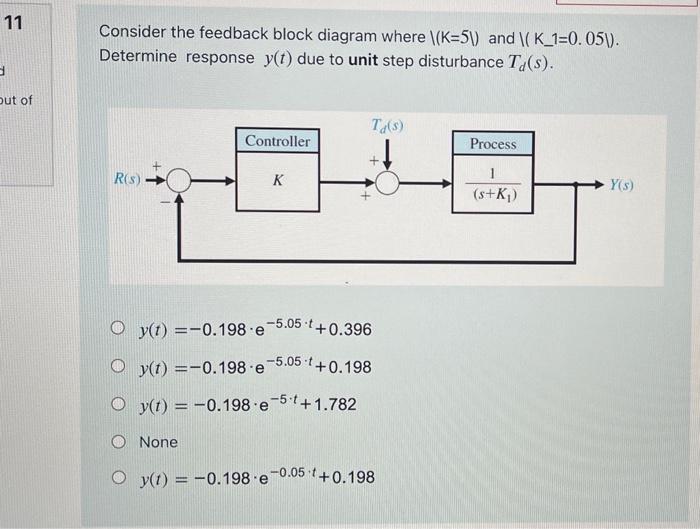

11 Consider the feedback block diagram where \(K=51) and (K_1=0.051). Determine response y(t) due to unit step disturbance Tds). out of Ta(s) Controller Process R(S) K 1 (s+K) Y(5) O y(t) =-0.198.e-5.05-1 +0.396 O y(t) =-0.198-e-5.05-+ +0.198 Oy(t) = -0.198.e-5t+1.782 O None Oy(t) = -0.198e-0.05 + +0.198
