Find the transfer function Xo(s)/X;(s) of the mechanical system shown in Figure 4–24. Obtain the response xo(t) when the

[answerhappygod]

Find The Transfer Function Xo S X S Of The Mechanical System Shown In Figure 4 24 Obtain The Response Xo T When The 1 (49.37 KiB) Viewed 8 times

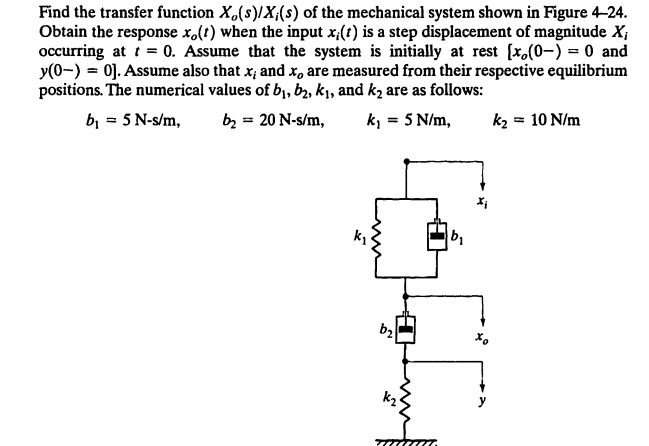

Find the transfer function Xo(s)/X;(s) of the mechanical system shown in Figure 4–24. Obtain the response xo(t) when the input x:(t) is a step displacement of magnitude X; occurring at i = 0. Assume that the system is initially at rest (x.(0-) = 0 and y(0-) = 0). Assume also that x; and x, are measured from their respective equilibrium positions. The numerical values of b1,b2, k1, and kq are as follows: b = 5 N-s/m, b2 = 20 N-s/m, k, = 5 N/m, kz = 10 N/m Xi 2 bi b2 *
