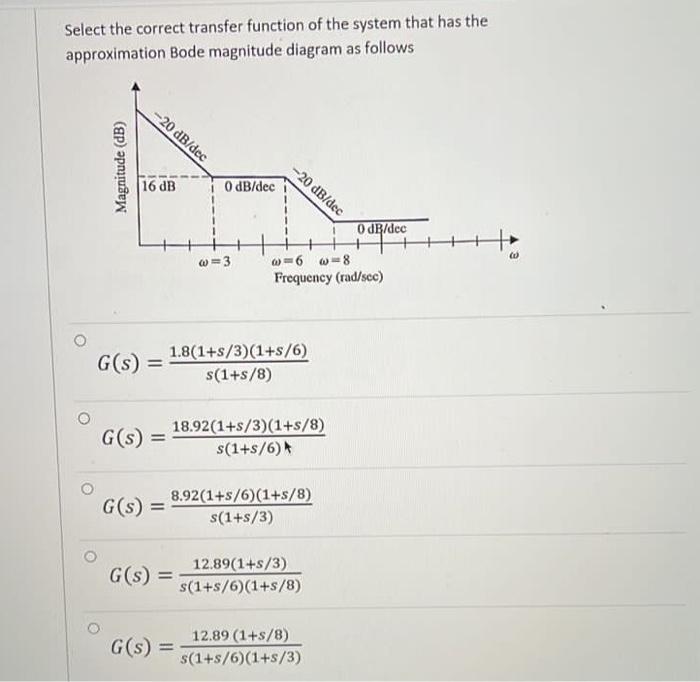

Select the correct transfer function of the system that has the
approximation Bode magnitude diagram as follows
Select the correct transfer function of the system that has the approximation Bode magnitude diagram as follows -20 dB/dec Magnitude (dB) -20 dB/dec 16 dB 0 dB/dec OdB/dec w=3 0-6 6-8 Frequency (rad/sec) G(s) = 1.8(1+s/3)(1+s/6) s(1+s/8) G(S) = 18.92(1+s/3)(1+s/8) S(1+s/6) G(s) 8.92(1+s/6)(1+5/8) s(1+s/3) 12.89(1+s/3) G(S) = s(1+s/6)(1+s/8) G(s) 12.89 (1+s/8) s(1+8/6)(1+s/3)
