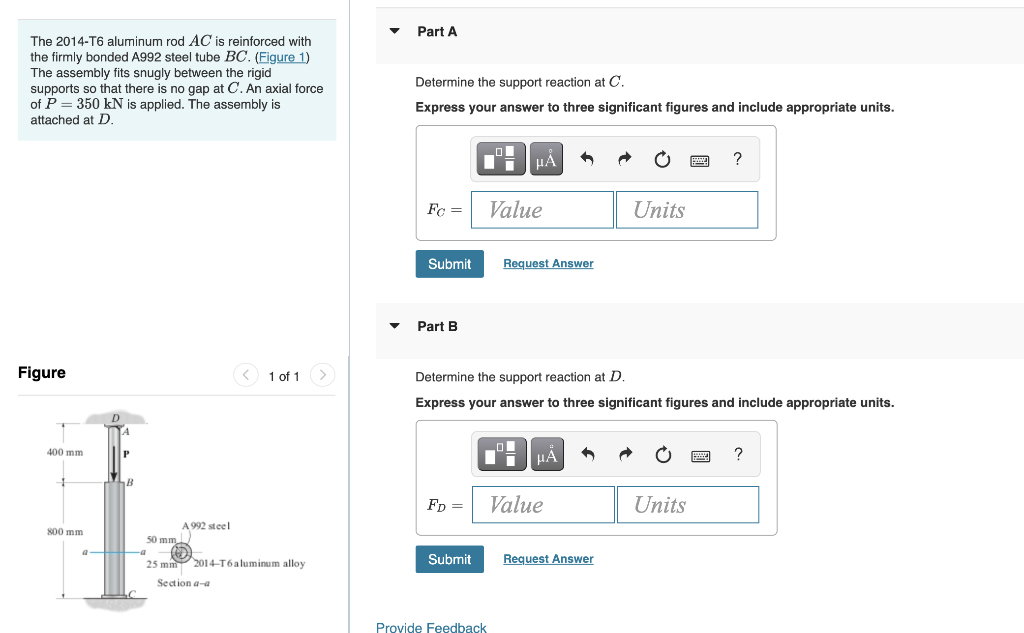

Part A The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) The assembly fits

[answerhappygod]

Part A The 2014 T6 Aluminum Rod Ac Is Reinforced With The Firmly Bonded A992 Steel Tube Bc Figure 1 The Assembly Fits 1 (83.66 KiB) Viewed 16 times

Part A The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) The assembly fits snugly between the rigid supports so that there is no gap at C. An axial force of P = 350 kN is applied. The assembly is attached at D. Determine the support reaction at C. Express your answer to three significant figures and include appropriate units. HA ? Fc= Value Units Submit Request Answer Part B Figure < 1 of 1 Determine the support reaction at D. Express your answer to three significant figures and include appropriate units. D 400 mm P НА ? B FD = Value Units 800 mm A992 steel 50 mm Submit 25 mm 2014-T6 aluminum alloy Request Answer Section - Provide Feedback
