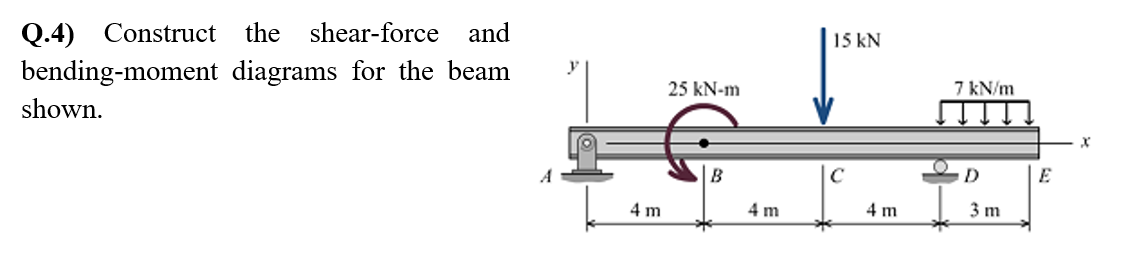

15 KN Q.4) Construct the shear-force and bending-moment diagrams for the beam shown. y 25 KN-m 7 kN/m . B с D 4 m 4 m 4
