D Question 11 Consider the following unity feedback control diagram: R(s) + K(8 + 1) C(s) 1 (s + 2)(s 1) Investigate clo

[answerhappygod]

D Question 11 Consider The Following Unity Feedback Control Diagram R S K 8 1 C S 1 S 2 S 1 Investigate Clo 1 (54.29 KiB) Viewed 11 times

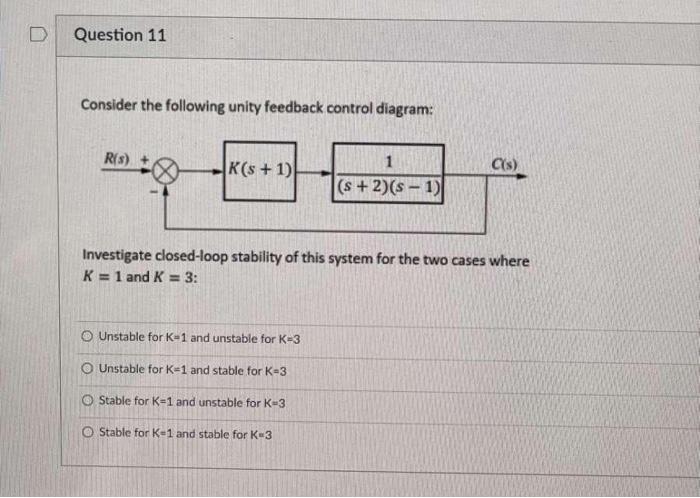

D Question 11 Consider the following unity feedback control diagram: R(s) + K(8 + 1) C(s) 1 (s + 2)(s 1) Investigate closed-loop stability of this system for the two cases where K = 1 and K = 3: Unstable for K-1 and unstable for K-3 O Unstable for k=1 and stable for K-3 O Stable for K-1 and unstable for K-3 O Stable for K-1 and stable for K 3
