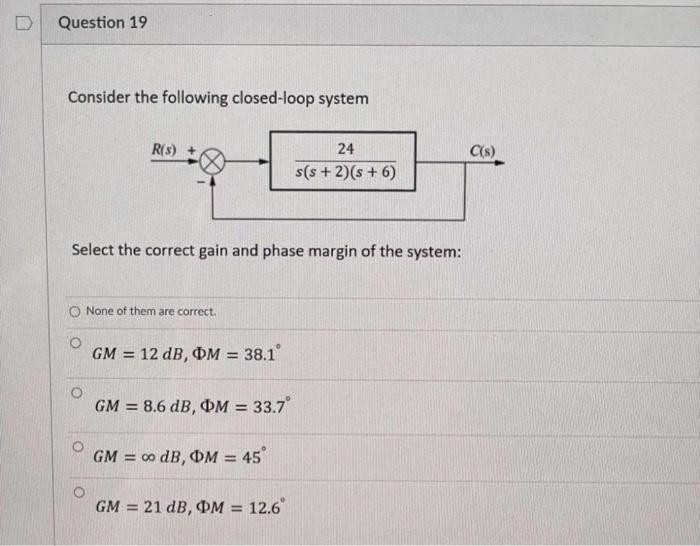

D Question 19 Consider the following closed-loop system R(3) C(s) 24 s(s+2)(s +6) Select the correct gain and phase marg
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
D Question 19 Consider the following closed-loop system R(3) C(s) 24 s(s+2)(s +6) Select the correct gain and phase marg
D Question 19 Consider the following closed-loop system R(3) C(s) 24 s(s+2)(s +6) Select the correct gain and phase margin of the system: O None of them are correct. GM = 12 dB, OM = 38.1° O GM = 8.6 dB, OM = 33.7° GM = 0 dB, OM = 45° GM = 21 dB, DM = 12.6
