Ii La Viga Bc Es Soportada Por Dos Pasadores De 5 8 In De Diametro El De La Derecha La Sostiene De La Barra Ab La Vig 1 (19.17 KiB) Viewed 13 times
The BC beam is supported by two pins of 5/8 in diameter, the one on the right holds it from the bar.AB. The BC beam has a sectional area of 2.25 in2 and the AB bar of 1.25 in?.A.Determine the average normal effort on the AB bar. (10 pts.)B.Determine the average shear stress on the pin C. (10 pts.)
The BC beam is supported by two pins of 5/8 in diameter, the one on the right holds it from the bar.
AB. The BC beam has a sectional area of 2.25 in2 and the AB bar of 1.25 in?.
A.
Determine the average normal effort on the AB bar. (10 pts.)
B.
Determine the average shear stress on the pin C. (10 pts.)

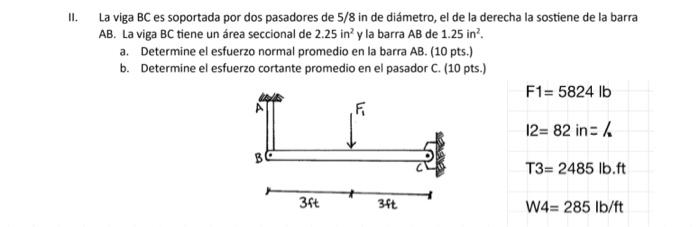

II. La viga BC es soportada por dos pasadores de 5/8 in de diámetro, el de la derecha la sostiene de la barra AB. La viga BC tiene un área seccional de 2.25 in' y la barra AB de 1.25 in? a. Determine el esfuerzo normal promedio en la barra AB. (10 pts.) b. Determine el esfuerzo cortante promedio en el pasador C. (10 pts.) F1= 5824 lb F 12= 82 in= T3= 2485 lb.ft 3ft 3ft W4= 285 lb/ft
