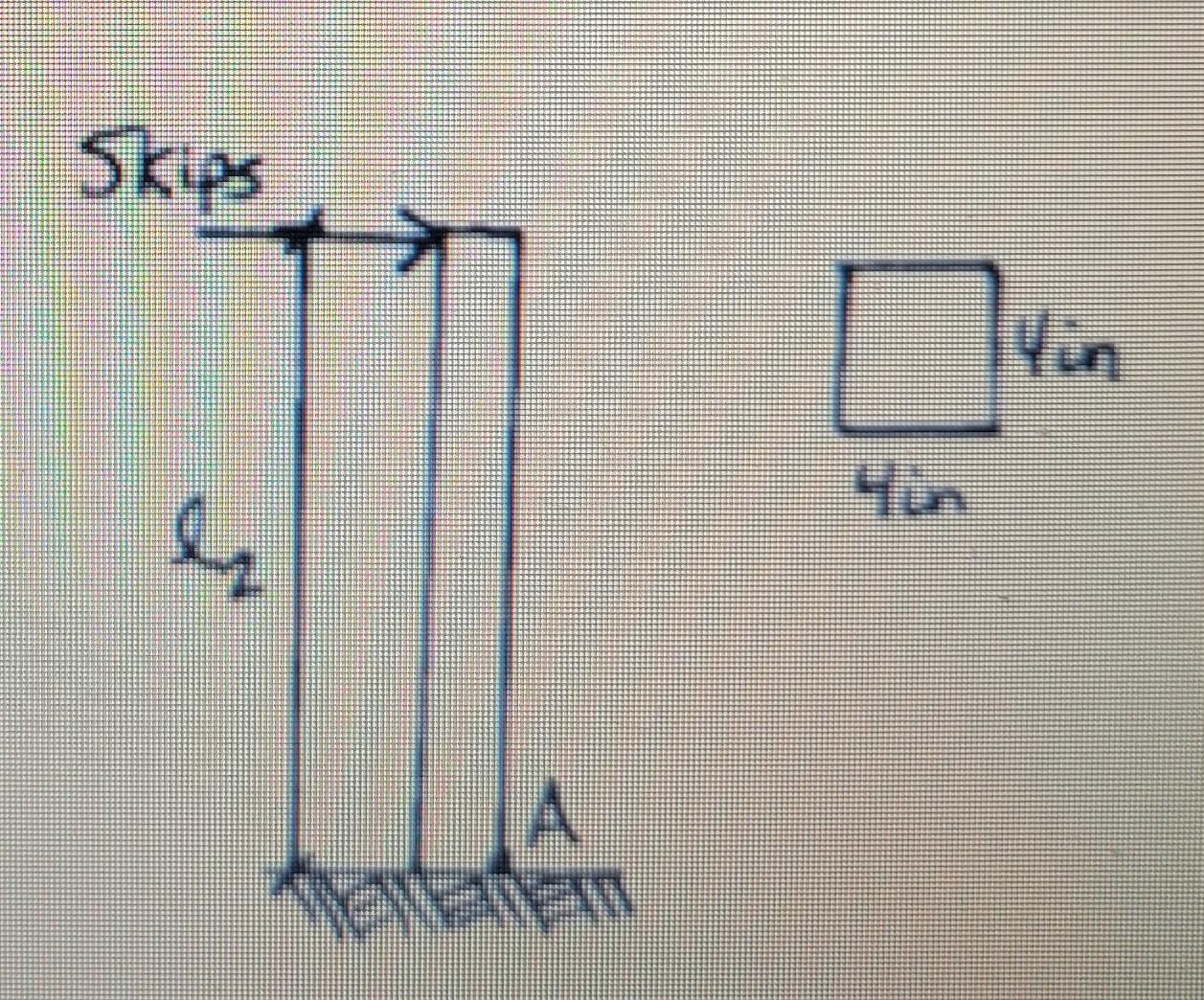

A steel element with a modulus of elasticity of 29,000 ksi, a square section with dimensions of 4 in, a sectional area of 16 in^2, a moment of inertia of 21.33 in^4 and a length I2.
I2= 92 in
a Determine the vertical force (F) required for a shrinkage of 0.02 in.
b. If a horizontal force of 5 kips is applied at the end, determine the normal stress per flexion at point A.
A Steel Element With A Modulus Of Elasticity Of 29 000 Ksi A Square Section With Dimensions Of 4 In A Sectional Area O 1 (381.74 KiB) Viewed 15 times
Skips > ܩܛ A ܠܠܛܠܐ
