5-0 or 10) Flexural rigidity of both members is El. Using Castigliano's Theorem and considering strain energy due to ben

Post by answerhappygod »

5 0 Or 10 Flexural Rigidity Of Both Members Is El Using Castigliano S Theorem And Considering Strain Energy Due To Ben 1
5 0 Or 10 Flexural Rigidity Of Both Members Is El Using Castigliano S Theorem And Considering Strain Energy Due To Ben 1 (17.53 KiB) Viewed 16 times

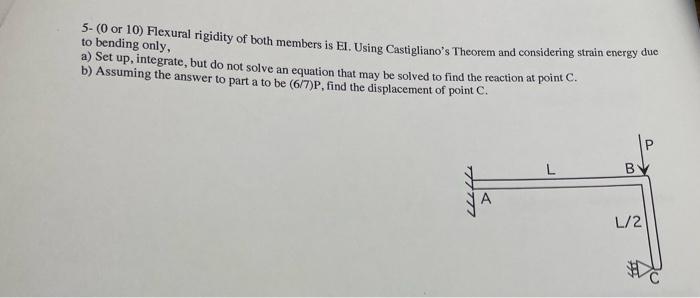

5-0 or 10) Flexural rigidity of both members is El. Using Castigliano's Theorem and considering strain energy due to bending only, a) Set up, integrate, but do not solve an equation that may be solved to find the reaction at point C. b) Assuming the answer to part a to be (67)P, find the displacement of point C. B A L/2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
