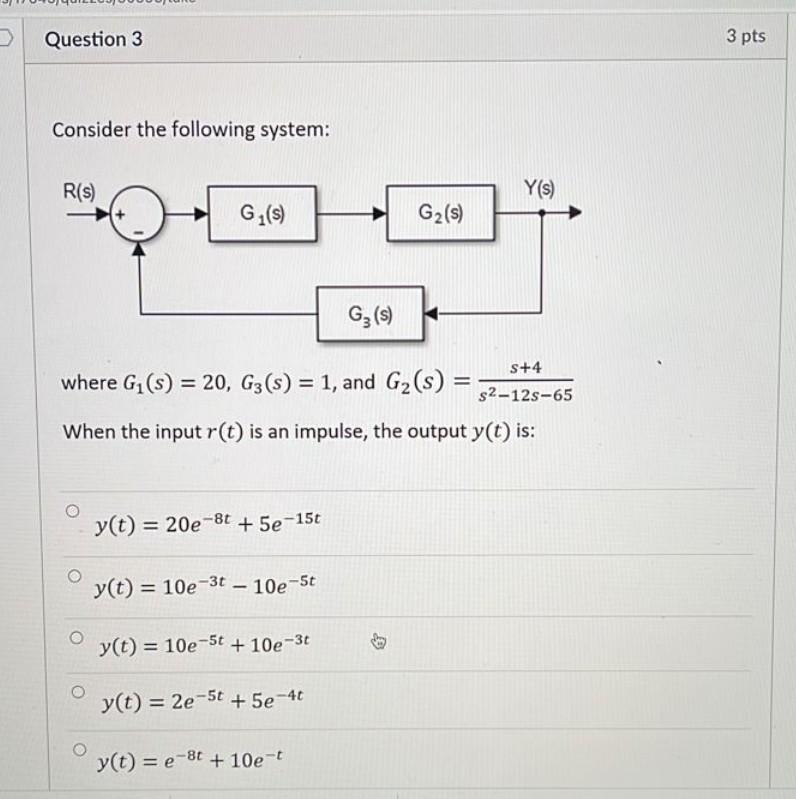

Question 3 3 Pts Consider The Following System R S Y S G S G2 S G3 5 Where G S 20 G3 S 1 And G2 S S 4 1 (60.69 KiB) Viewed 14 times
please do it in 30 minutes please urgently... I'll give you up thumb definitely Question 3 3 pts Consider the following system: R(s) Y(S) G(s) G2(s) G3 (5) where G(s) = 20, G3(s) = 1, and G2(s) =; S+4 S2-12s-65 When the input r(t) is an impulse, the output y(t) is: O y(t) = 20e-8t + 5e-15t y(t) = 10e-3t – 10e-5t - O y(t) = 10e-St + 10e-3t o y(t) = 2e-5t + 5e-4t y(t) = e-8t + 10e-t
