problem statements are solved sequentially, and the simulation is
done on software like SMath or MathCAD.

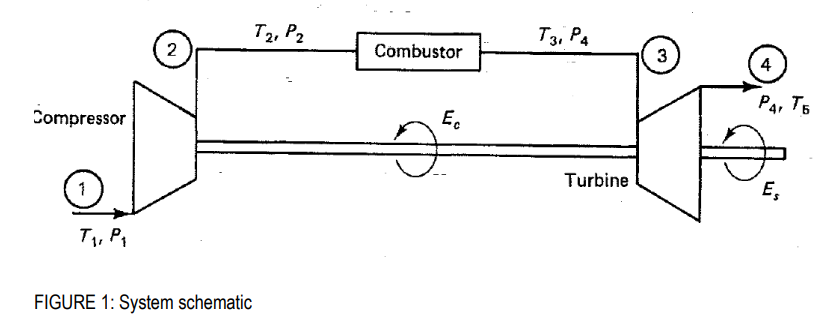

The gas turbine system in Figure 1 is to be simulated.
Compressor and turbine characteristics are given in Figure 2 y
Figure 3 respectively. Use air as the working fluid. T1 is 100 F,
and 210 gal/hr of JP-4 (heat content 130 000 Btu/gal) fuel is used.
Assuming p2 = p3 and neglecting the effects of πΜπ on the mass flow
rate, complete the following in order: a) Generate curve fits for
π2 = π2(πΜ ) and πΈπ (πΜ ) b) Generate curve fits for πΜ = πΜ (π3,
π3 ) and πΈπ‘ = πΈπ‘ (π3, π3 ) c) Develop the system of equations
required to model the systems d) Simulate the system e) List the
steady-state value of all variables. f) What is the turbine exit
temperature? If the unit is an industrial gas turbine, examine the
potential for energy recovery from the exhaust gases.
- Need Some Help On How To Start Solving The Problem Below The Problem Statements Are Solved Sequentially And The Simula 1 (30.42 KiB) Viewed 16 times
- Need Some Help On How To Start Solving The Problem Below The Problem Statements Are Solved Sequentially And The Simula 2 (36.17 KiB) Viewed 16 times
- Need Some Help On How To Start Solving The Problem Below The Problem Statements Are Solved Sequentially And The Simula 3 (71.18 KiB) Viewed 16 times

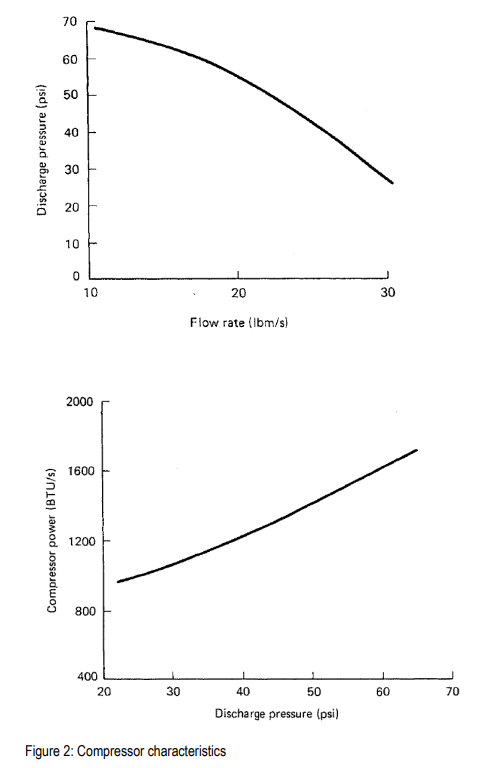

70 60 50 40 - Discharge pressure (psi) 30 20 10 O 10 20 30 Flow rate (ibm/s) 2000 1600 Compressor power (BTU/s) 1200 800 400 20 30 40 50 60 70 Discharge pressure (psi) Figure 2: Compressor characteristics

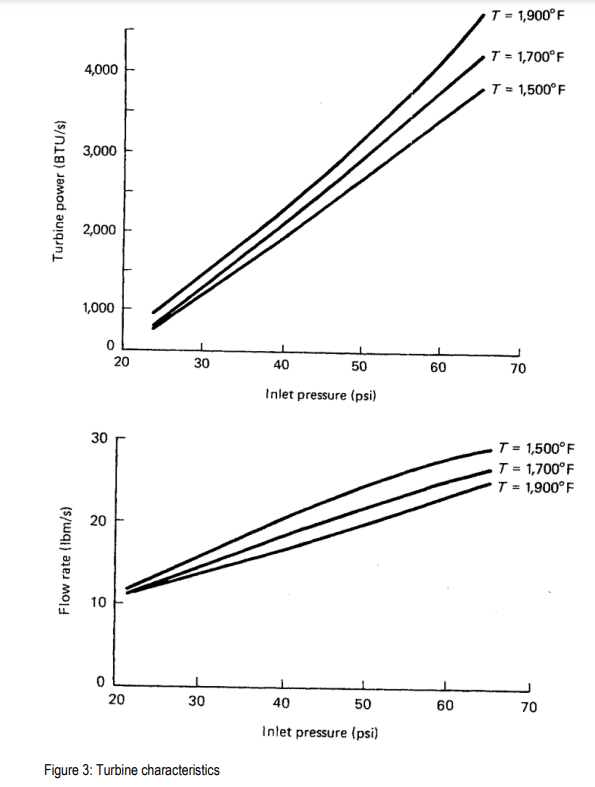

T = 1,900Β°F 4,000 - T = 1,700Β°F T = 1,500Β°F 1 3,000 1 Turbine power (BTU/s) 2,000 1,000 0 20 30 40 50 60 70 Inlet pressure (psi) 30 T = 1,500Β°F T = 1,700Β°F T = 1,900Β°F 20 Flow rate (lbm/s) 10 0 20 30 40 50 60 70 Inlet pressure (psi) Figure 3: Turbine characteristics
