QUESTION 6 A simple beam AB is loaded as shown in the Figure below. The loads are: P =100 N and q= 200 N/m. The beam cha

[answerhappygod]

Question 6 A Simple Beam Ab Is Loaded As Shown In The Figure Below The Loads Are P 100 N And Q 200 N M The Beam Cha 1 (75.2 KiB) Viewed 10 times

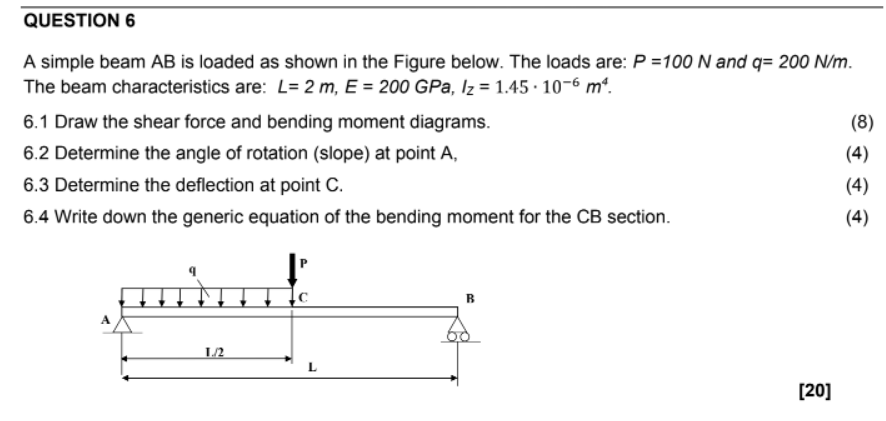

QUESTION 6 A simple beam AB is loaded as shown in the Figure below. The loads are: P =100 N and q= 200 N/m. The beam characteristics are: L= 2 m, E = 200 GPa, Iz = 1.45 . 10-6 mº. 6.1 Draw the shear force and bending moment diagrams. (8) 6.2 Determine the angle of rotation (slope) at point A, (4) 6.3 Determine the deflection at point C. (4) 6.4 Write down the generic equation of the bending moment for the CB section. (4) B А 1./2 [20]
