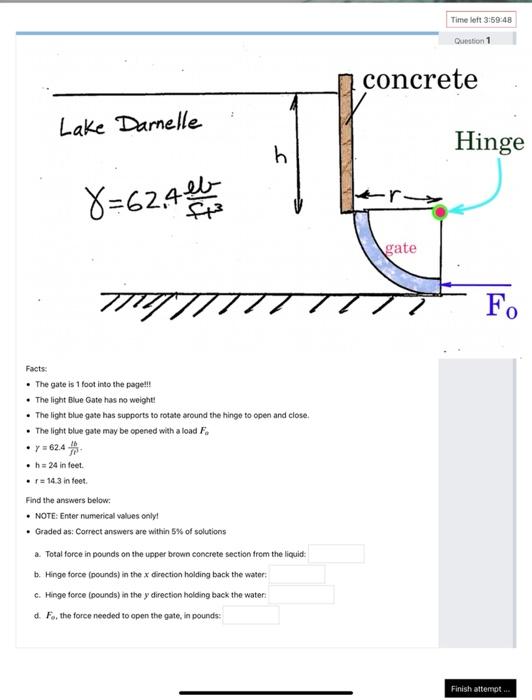

Timeloft 3:59:48 Question 1 concrete Lake Damelle Hinge b 8=62.4 ft gate 7701 F. Facts: • The gate is 1 foot into the page!!! • The light Blue Gate has no weight! The light blue gate has supports to rotate around the hinge to open and close The light blue gate may be opened with a load F. y = 62.4 . h=24 in feet . r = 14.3 in feet Find the answers below. . NOTE: Enter numerical values only! • Graded as Correct answers are within 5% of solutions a. Total force in pounds on the upper brown concrete section from the liquid b. Hinge force (pounds) in the x direction holding back the water, c. Hinge force (pounds) in the y direction holding back the water d. F, the force needed to open the gate, in pounds: Finish attempt...
