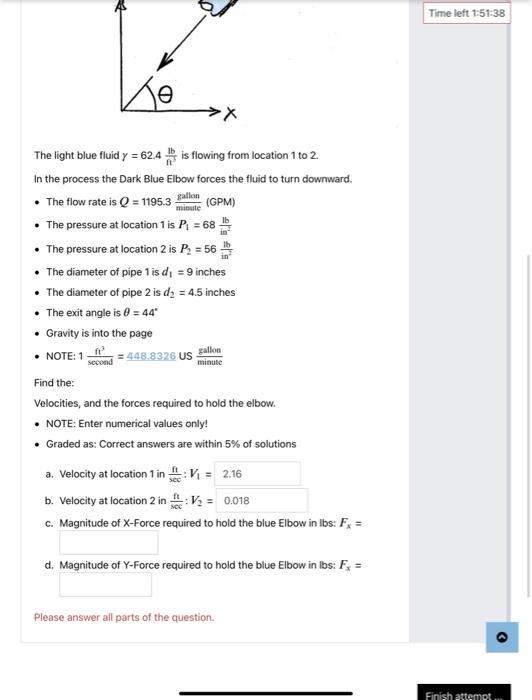

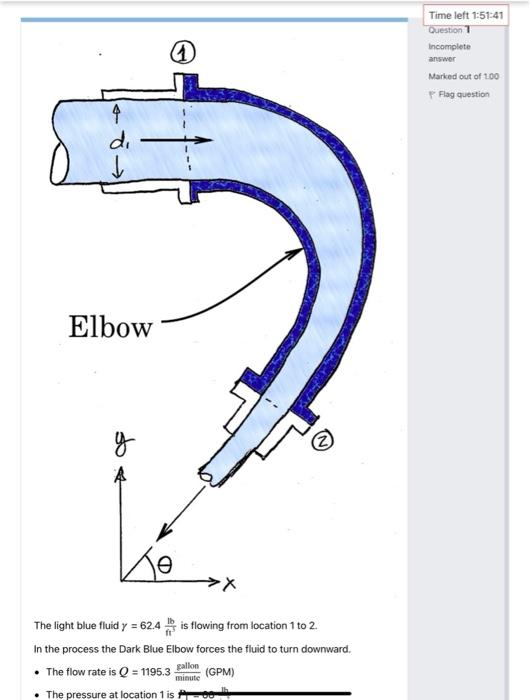

Time left 1:51:38 Х pallon (GPM) mi Ib The light blue fluid y = 624 is flowing from location 1 to 2. In the process the Dark Blue Elbow forces the fluid to turn downward. • The flow rate is Q = 1195.3 • The pressure at location 1 is P1 = 68 • The pressure at location 2 is P = 56 The diameter of pipe 1 is di = 9 inches • The diameter of pipe 2 is d2 = 4.5 inches • The exit angle is 0 = 44" • Gravity is into the page • NOTE: 1 = 448.8326 US gallon second Find the Velocities, and the forces required to hold the elbow. • NOTE: Enter numerical values only! • Graded as: Correct answers are within 5% of solutions a. Velocity at location 1 in Vi= 2.16 b. Velocity at location 2 in 12 = 0.018 C. Magnitude of X-Force required to hold the blue Elbow in lbs: Fx = minute d. Magnitude of Y-Force required to hold the blue Elbow in lbs: Fx = Please answer all parts of the question. Finish attempt
