TASK 3. Based on the initial data presented in the table, determine the limit dimensions of the hole and shaft; missing

Post by answerhappygod »

Task 3 Based On The Initial Data Presented In The Table Determine The Limit Dimensions Of The Hole And Shaft Missing 1
Task 3 Based On The Initial Data Presented In The Table Determine The Limit Dimensions Of The Hole And Shaft Missing 1 (46.52 KiB) Viewed 15 times

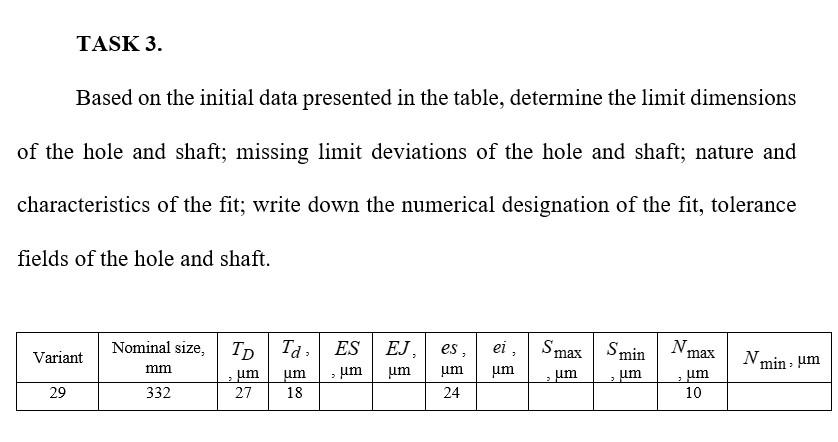

TASK 3. Based on the initial data presented in the table, determine the limit dimensions of the hole and shaft; missing limit deviations of the hole and shaft; nature and characteristics of the fit; write down the numerical designation of the fit, tolerance fields of the hole and shaft. Nominal size, ID Variant mm TES EJ, es, um um um um 18 24 ei , | Smax | Smin | Vmax um um um um 10 Nmin, um um 3 3 29 332 27
