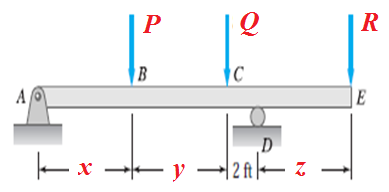

Determine the bending moment 6.83 ft to the right of
point B for the beam shown below if P = 579 lb, Q
= 707 lb, R = 588 lb, x = 5.38 ft, y = 5.13 ft, and z = 6.1 ft.
Round off the final answer (in lb ft) to four decimal places.
Determine The Bending Moment 6 83 Ft To The Right Of Point B For The Beam Shown Below If P 579 Lb Q 707 Lb R 588 1 (12.87 KiB) Viewed 10 times
P IR le B с A E D Kx x = y 2017
