marks) (b) The open-loop transfer function (OLTF) of a unity feedback servomechanism system is given by: G(s)H(s) = K(s

[answerhappygod]

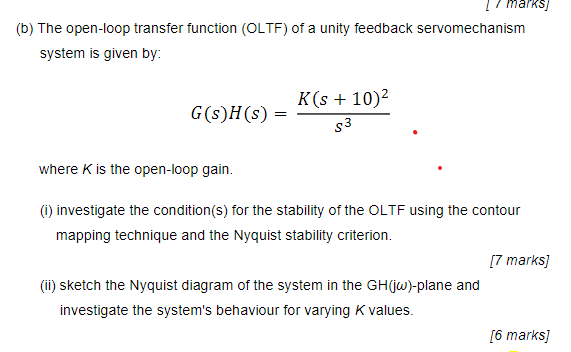

Marks B The Open Loop Transfer Function Oltf Of A Unity Feedback Servomechanism System Is Given By G S H S K S 1 (15.5 KiB) Viewed 11 times

marks) (b) The open-loop transfer function (OLTF) of a unity feedback servomechanism system is given by: G(s)H(s) = K(s + 10) 33 where K is the open-loop gain. (1) investigate the condition(s) for the stability of the OLTF using the contour mapping technique and the Nyquist stability criterion. [7 marks) (ii) sketch the Nyquist diagram of the system in the GH(jw)-plane and investigate the system's behaviour for varying K values. [6 marks]
