i need a force analysis on this device.. sheet metal cutter used an actuator to do the motion. the actuator rod moves li

Post by answerhappygod »

I Need A Force Analysis On This Device Sheet Metal Cutter Used An Actuator To Do The Motion The Actuator Rod Moves Li 1
I Need A Force Analysis On This Device Sheet Metal Cutter Used An Actuator To Do The Motion The Actuator Rod Moves Li 1 (274.46 KiB) Viewed 11 times
i need a force analysis on this device..

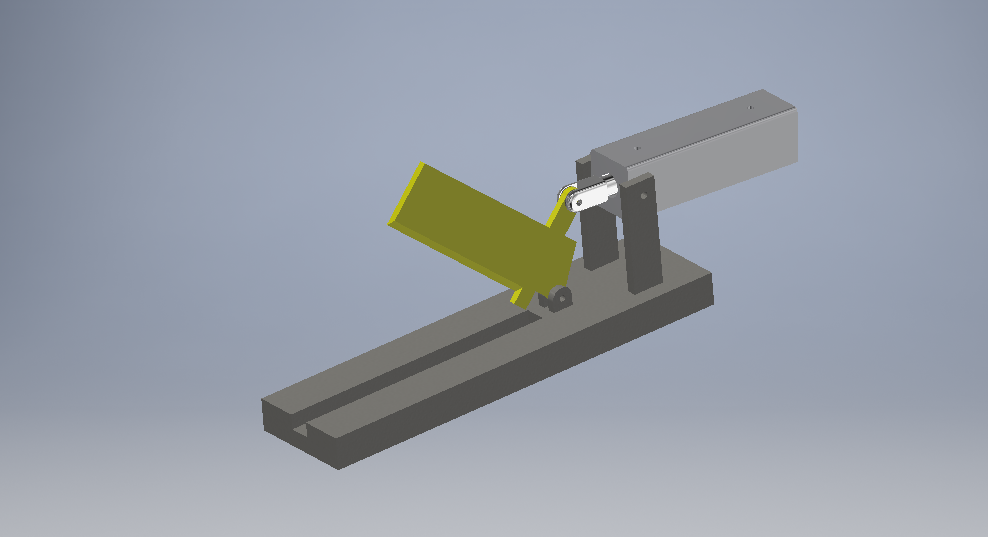

sheet metal cutter used an actuator to do the motion.
the actuator rod moves linearly and the actuator itself also
rotates slightly to allow for rotation of the cutter blade.
force analysis drawing in needed.
actuator angle with the vertical axis is 85.8, and blade angle
with the horizontal axis is 41.7
