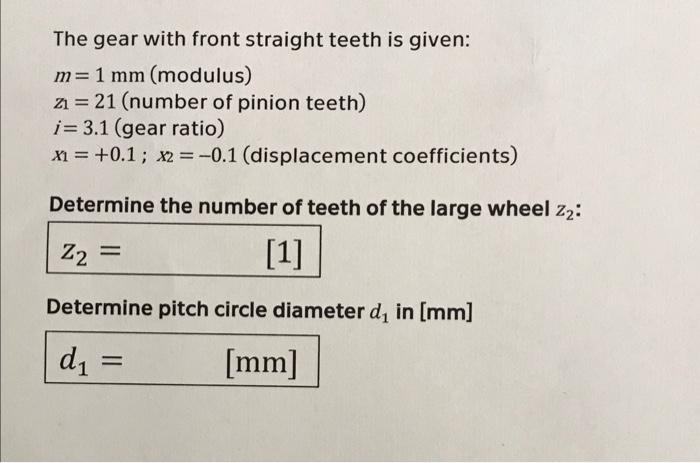

The gear with front straight teeth is given: m= 1 mm (modulus) 21 = 21 (number of pinion teeth) i= 3.1 (gear ratio) x1 = +0.1 ; x2=-0.1 (displacement coefficients) Determine the number of teeth of the large wheel zz: 22 = [1] Determine pitch circle diameter d, in [mm] di [mm]
