Aircraft Structures - ENG2011-N 5. a. i. State the Principle of Superposition, giving 2 conditions that must be met for

[answerhappygod]

Aircraft Structures Eng2011 N 5 A I State The Principle Of Superposition Giving 2 Conditions That Must Be Met For 1 (42.31 KiB) Viewed 16 times

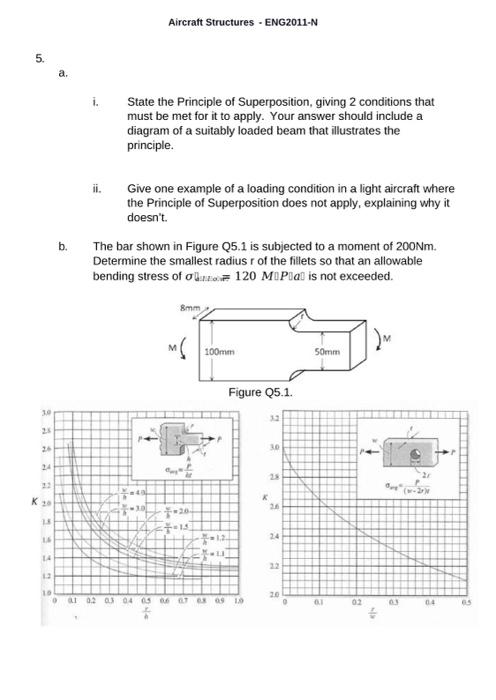

Aircraft Structures - ENG2011-N 5. a. i. State the Principle of Superposition, giving 2 conditions that must be met for it to apply. Your answer should include a diagram of a suitably loaded beam that illustrates the principle. ii. Give one example of a loading condition in a light aircraft where the Principle of Superposition does not apply, explaining why it doesn't The bar shown in Figure Q5.1 is subjected to a moment of 200Nm. Determine the smallest radius r of the fillets so that an allowable bending stress of oli 120 MOPlat is not exceeded. b. 8mm MG 100mm 50mm Figure 25.1. 10 25 26 30 + 14 25 (w- K K 20 11 20 15 18 12 24 14 22 20 10 1 0.2 0.3 04 05 06 07 08 09 10 0 0.1 02 04
