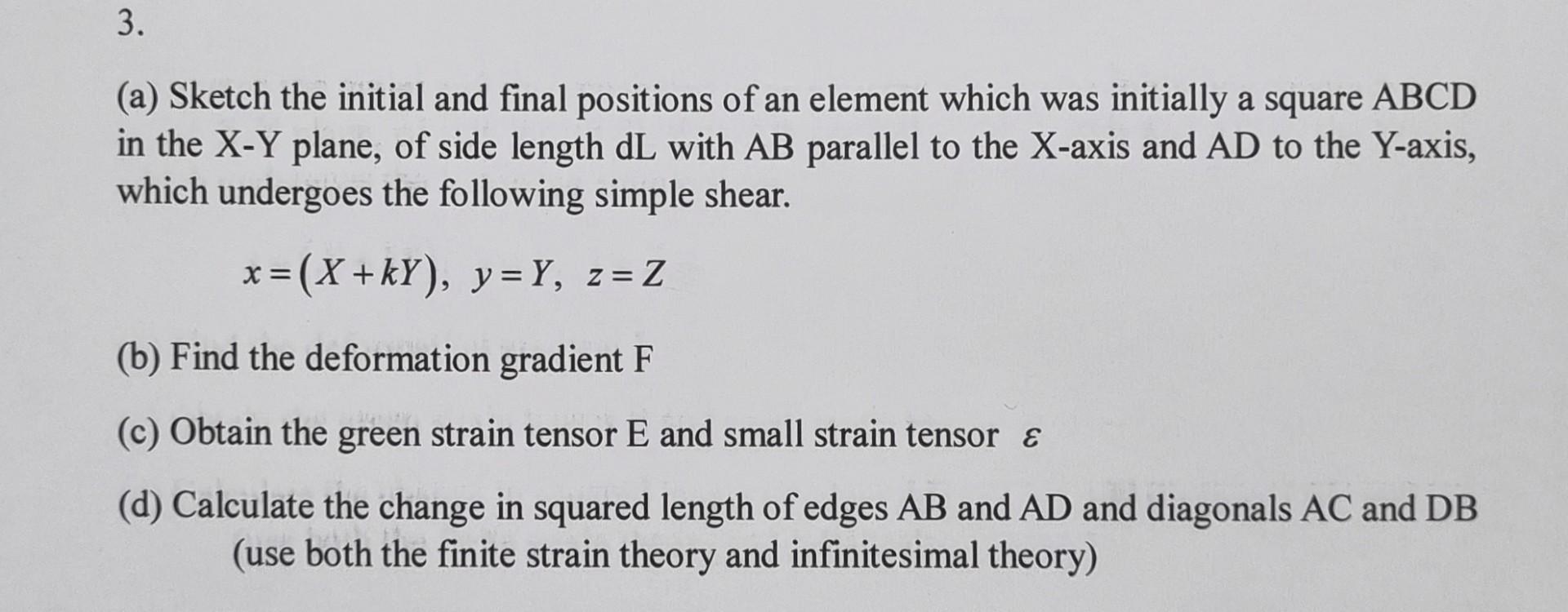

- 3 A Sketch The Initial And Final Positions Of An Element Which Was Initially A Square Abcd In The X Y Plane Of Side 1 (121.61 KiB) Viewed 45 times
3. (a) Sketch the initial and final positions of an element which was initially a square ABCD in the X-Y plane, of side length dL with AB parallel to the X-axis and AD to the Y-axis, which undergoes the following simple shear. x = (X+kY), y=Y, z = Z = (b) Find the deformation gradient F (c) Obtain the green strain tensor E and small strain tensor & (d) Calculate the change in squared length of edges AB and AD and diagonals AC and DB (use both the finite strain theory and infinitesimal theory)
