Q3: Sketch the output voltage Vo versus frequency for the low-pass R-C filter in the figure below and determine the volt

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q3: Sketch the output voltage Vo versus frequency for the low-pass R-C filter in the figure below and determine the volt

Post by answerhappygod »

Q3 Sketch The Output Voltage Vo Versus Frequency For The Low Pass R C Filter In The Figure Below And Determine The Volt 1
Q3 Sketch The Output Voltage Vo Versus Frequency For The Low Pass R C Filter In The Figure Below And Determine The Volt 1 (54.27 KiB) Viewed 14 times

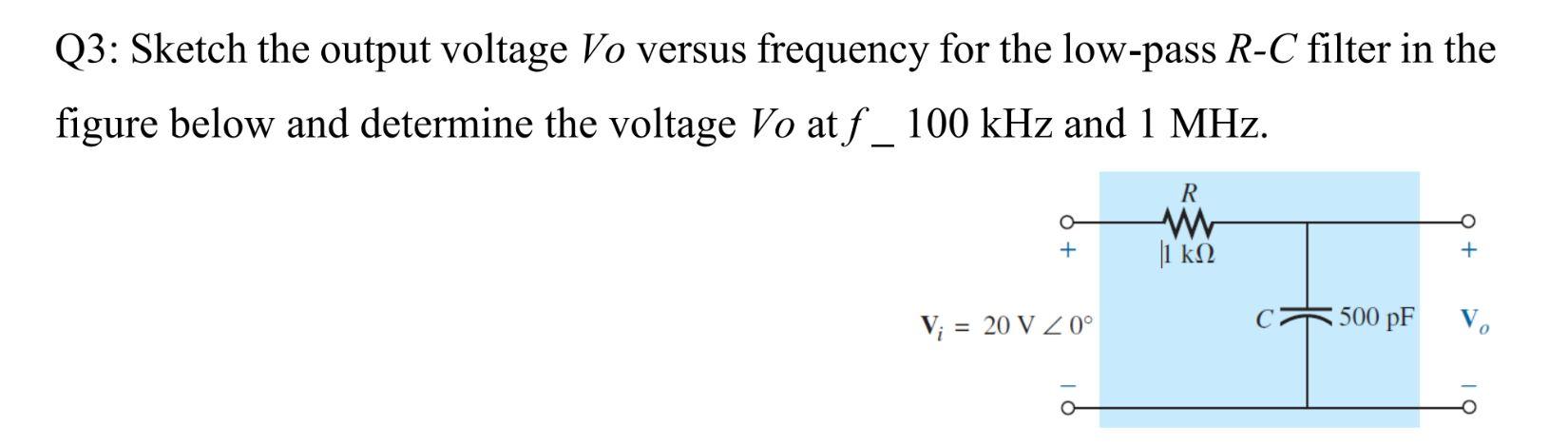

Q3: Sketch the output voltage Vo versus frequency for the low-pass R-C filter in the figure below and determine the voltage Vo at f _ 100 kHz and 1 MHz. R O + 1 k 2 + Vi = 20 V 20° 500 pF = T O
