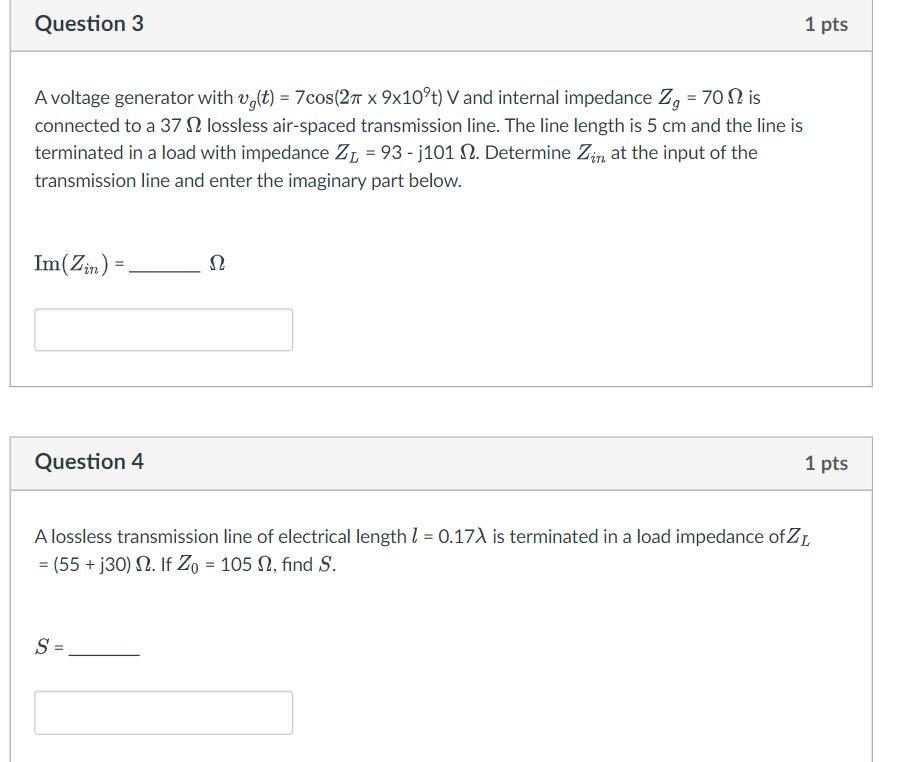

Question 3 1 pts A voltage generator with vg(t) = 7cos(27 x 9x10°t) V and internal impedance 2g = 70 N is connected to a 37 12 lossless air-spaced transmission line. The line length is 5 cm and the line is terminated in a load with impedance ZL = 93 - 3101 2. Determine Zin at the input of the transmission line and enter the imaginary part below. Im(Zin) 12 Question 4 1 pts A lossless transmission line of electrical length 1 = 0.171 is terminated in a load impedance of ZL = (55 +j30) 12. If Zo = 105 N, find S. S =
