Pre-lab analysis This lab is continuation of lab from last week. New values have been assigned to the inductor and capac

[answerhappygod]

Pre Lab Analysis This Lab Is Continuation Of Lab From Last Week New Values Have Been Assigned To The Inductor And Capac 1 (49.35 KiB) Viewed 14 times

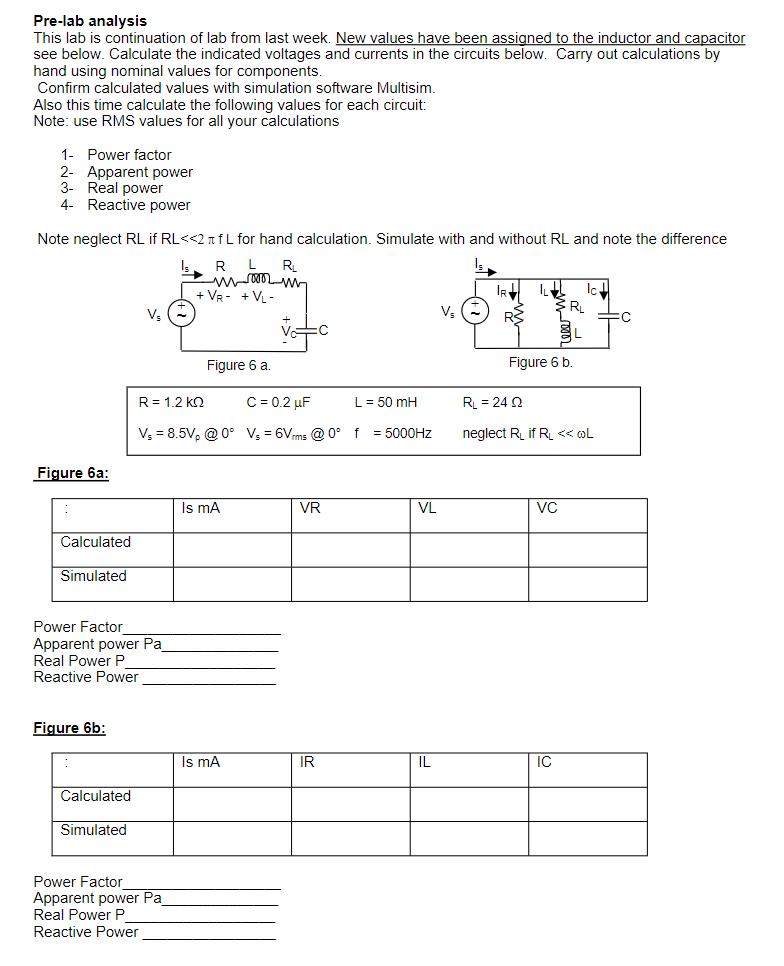

Pre-lab analysis This lab is continuation of lab from last week. New values have been assigned to the inductor and capacitor see below. Calculate the indicated voltages and currents in the circuits below. Carry out calculations by hand using nominal values for components. Confirm calculated values with simulation software Multisim. Also this time calculate the following values for each circuit: Note: use RMS values for all your calculations 1- Power factor 2- Apparent power 3- Real power 4- Reactive power Note neglect RL if RL<2nfL for hand calculation. Simulate with and without RL and note the difference R L R -w- + VR- + VL- IR VI Ic Vs V. RL C VAC Figure 6 a. Figure 6 b. R = 1.2 kg C = 0.2 F L = 50 mH RL = 242 Vs = 8.5V. @ 0° Vj = 6Vrms @ 0° f = 5000Hz neglect RL if RL << L Figure 6a: Is mA VR VL VC Calculated Simulated Power Factor Apparent power Pa Real Power P Reactive Power Figure 6b: Is mA IR IL IC Calculated Simulated Power Factor Apparent power Pa. Real Power P Reactive Power
