A lossless 44-12 transmission line is terminated in a load with ZL = (68 + j27) 12. Use the Smith chart to find the refl

Post by answerhappygod »

A Lossless 44 12 Transmission Line Is Terminated In A Load With Zl 68 J27 12 Use The Smith Chart To Find The Refl 1
A Lossless 44 12 Transmission Line Is Terminated In A Load With Zl 68 J27 12 Use The Smith Chart To Find The Refl 1 (39.05 KiB) Viewed 12 times

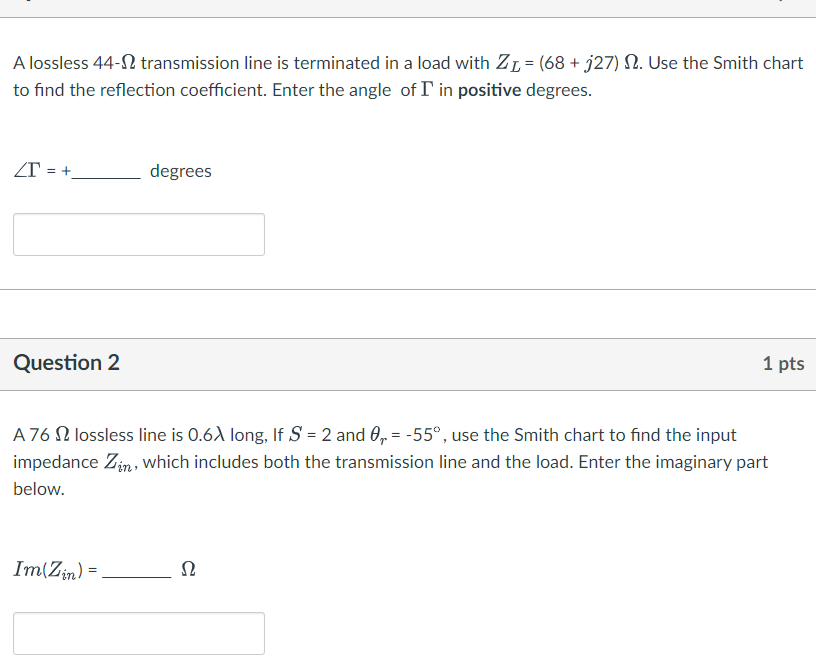

A lossless 44-12 transmission line is terminated in a load with ZL = (68 + j27) 12. Use the Smith chart to find the reflection coefficient. Enter the angle of I in positive degrees. ZT = + degrees Question 2 1 pts = A 76 12 lossless line is 0.69 long, If S = 2 and 0.. = -55°, use the Smith chart to find the input impedance Zin, which includes both the transmission line and the load. Enter the imaginary part below. Im(Zin) = = Ω
