QUESTION 1 (5 points). In the following circuit suppose that e(t) = 13 - 2e-St + sin(3t - 1); R= 41, L = 2Henry and C =0

[answerhappygod]

Question 1 5 Points In The Following Circuit Suppose That E T 13 2e St Sin 3t 1 R 41 L 2henry And C 0 1 (21.78 KiB) Viewed 12 times

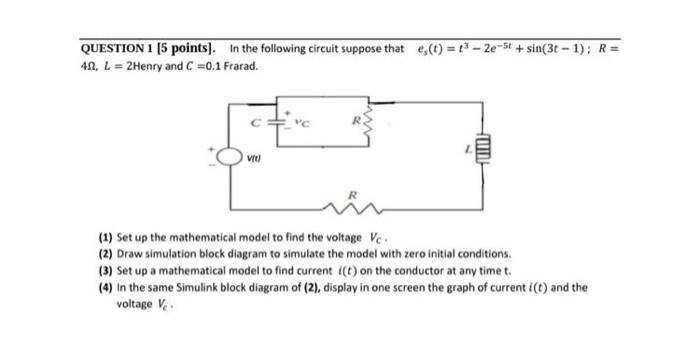

QUESTION 1 (5 points). In the following circuit suppose that e(t) = 13 - 2e-St + sin(3t - 1); R= 41, L = 2Henry and C =0.1 Frarad. c7 VU) (1) Set up the mathematical model to find the voltage Vc. (2) Draw simulation block diagram to simulate the model with zero initial conditions. (3) Set up a mathematical model to find current (t) on the conductor at any timet. (4) In the same Simulink block diagram of (2), display in one screen the graph of current i(t) and the voltage V
