4. An industrial engineer attempts to design a capacitor with highest capacitance value. There are three different diele

[answerhappygod]

4 An Industrial Engineer Attempts To Design A Capacitor With Highest Capacitance Value There Are Three Different Diele 1 (60.59 KiB) Viewed 14 times

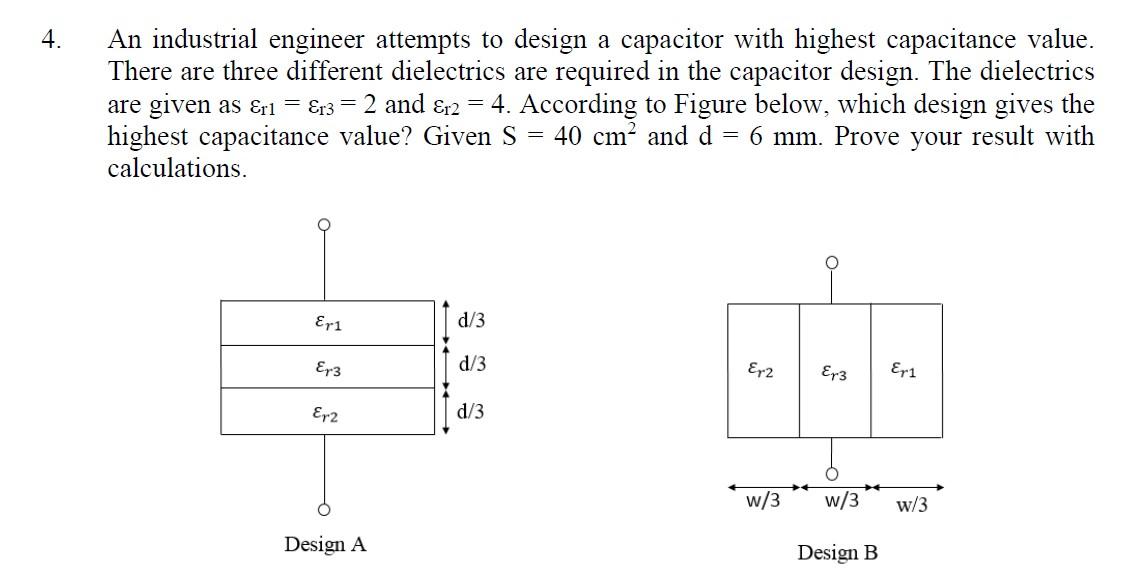

4. An industrial engineer attempts to design a capacitor with highest capacitance value. There are three different dielectrics are required in the capacitor design. The dielectrics are given as £ri = €13 = 2 and &r2 = 4. According to Figure below, which design gives the highest capacitance value? Given S = 40 cm² and d = 6 mm. Prove your result with calculations. Eri d/3 Er3 d/3 Er2 Er3 Er1 Er2 d/3 w/3 w/3 w/3 Design A Design B
