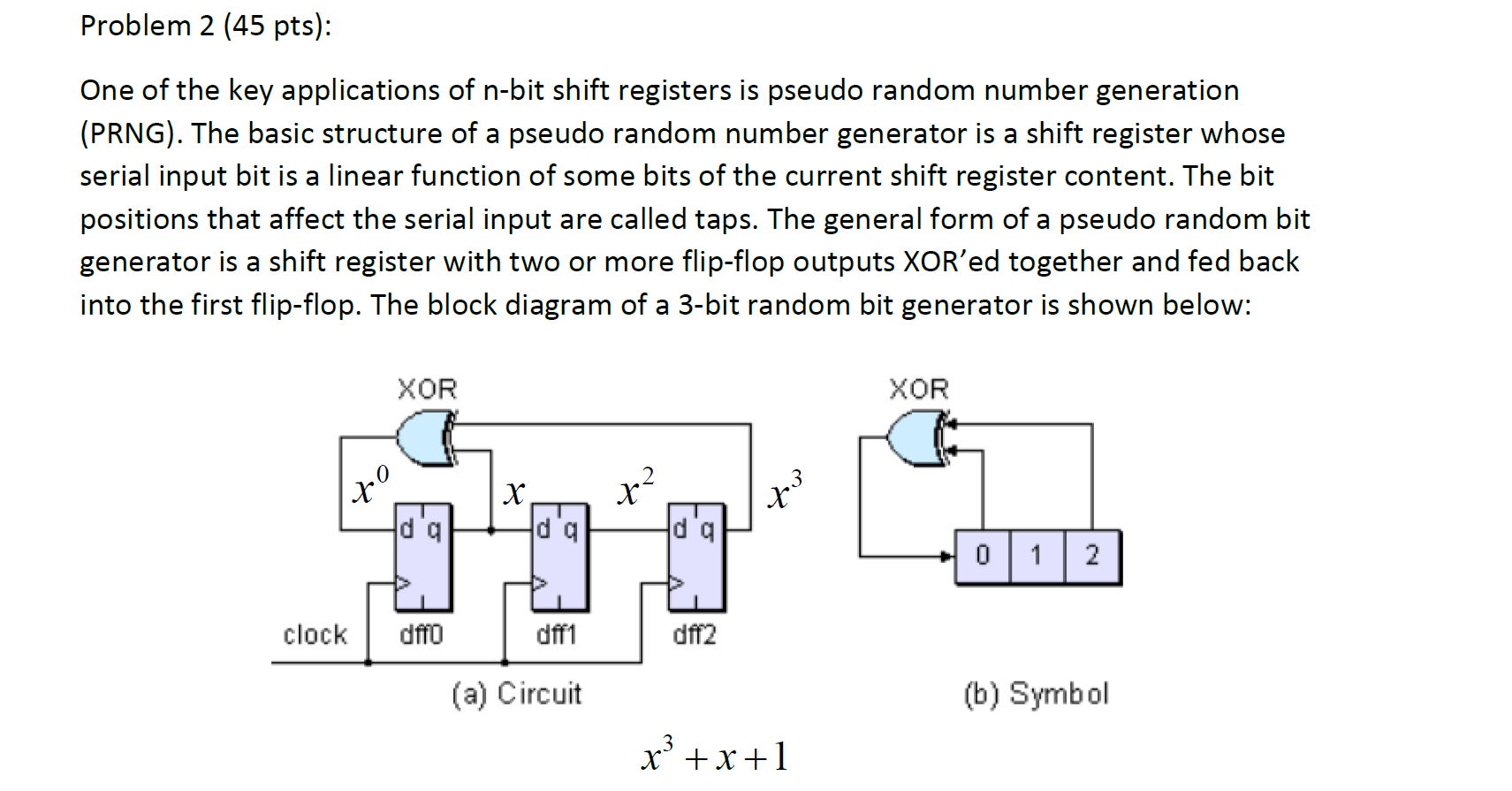

Problem 2 (45 pts): One of the key applications of n-bit shift registers is pseudo random number generation (PRNG). The basic structure of a pseudo random number generator is a shift register whose serial input bit is a linear function of some bits of the current shift register content. The bit positions that affect the serial input are called taps. The general form of a pseudo random bit generator is a shift register with two or more flip-flop outputs XOR’ed together and fed back into the first flip-flop. The block diagram of a 3-bit random bit generator is shown below: XOR XOR to х dy tu x jaa da 012 clock dffo dff1 dff2 (a) Circuit (b) Symbol X+X+1

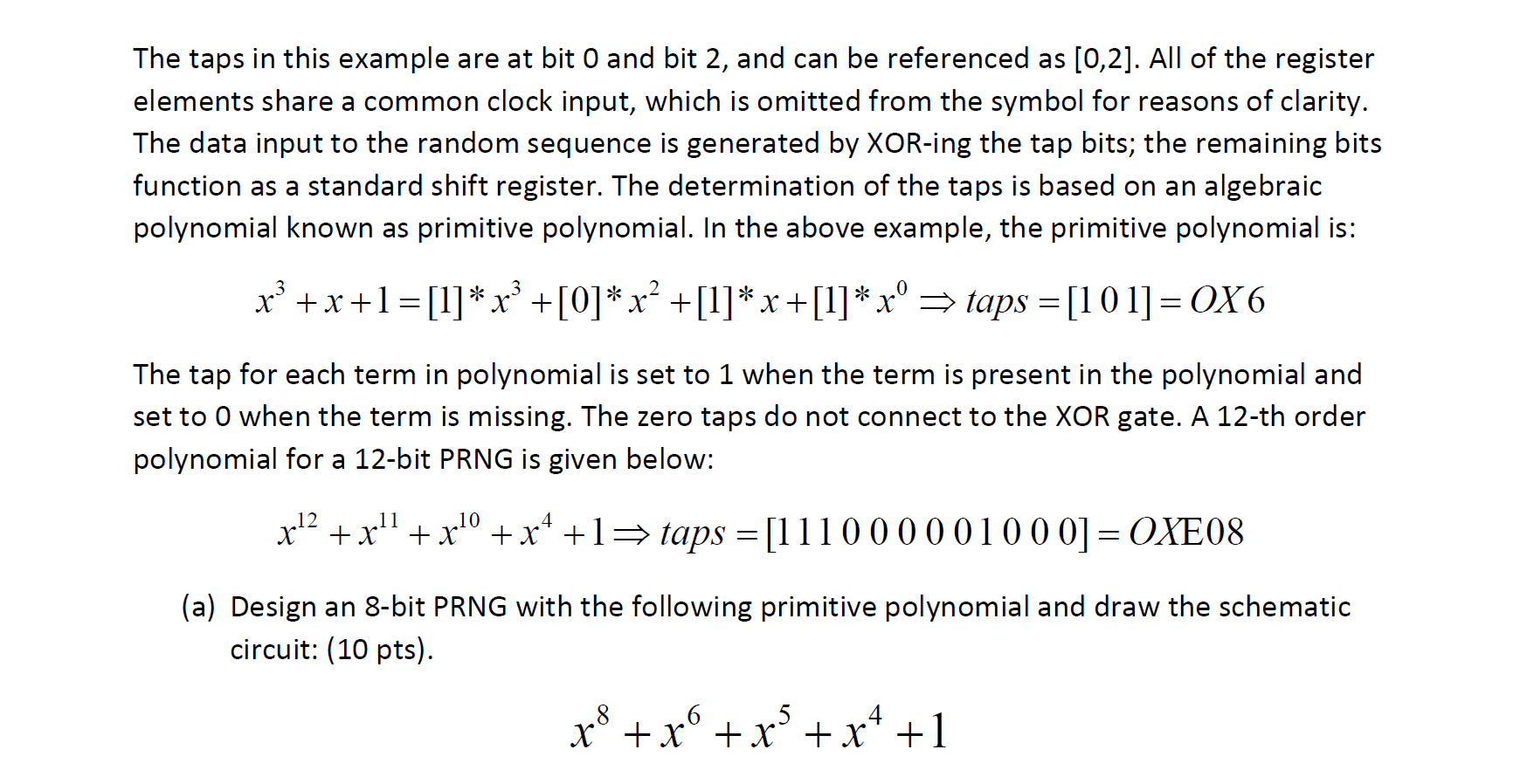

The taps in this example are at bit 0 and bit 2, and can be referenced as [0,2]. All of the register elements share a common clock input, which is omitted from the symbol for reasons of clarity. The data input to the random sequence is generated by XOR-ing the tap bits; the remaining bits function as a standard shift register. The determination of the taps is based on an algebraic polynomial known as primitive polynomial. In the above example, the primitive polynomial is: x +x+1=[1]*x* +[0]* x² +[1]*x +[1]* t° = taps = [101]=OX 6 + The tap for each term in polynomial is set to 1 when the term is present in the polynomial and set to o when the term is missing. The zero taps do not connect to the XOR gate. A 12-th order polynomial for a 12-bit PRNG is given below: .12 11 4 x?? + x + xº +x+ +1=> taps = [111000001000] = OXE08 10 (a) Design an 8-bit PRNG with the following primitive polynomial and draw the schematic circuit: (10 pts). xº +x^ +x+x^ +1 tx x3
