2. Find Vos and Vas in the circuit shown. For the particular JFET in this circuit, the parameter values such as gm, VGS(
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. Find Vos and Vas in the circuit shown. For the particular JFET in this circuit, the parameter values such as gm, VGS(

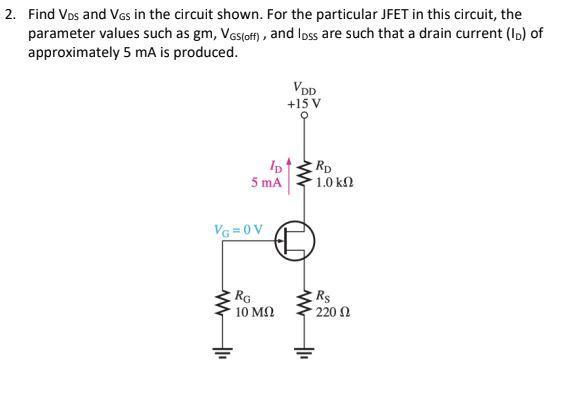

2. Find Vos and Vas in the circuit shown. For the particular JFET in this circuit, the parameter values such as gm, VGS(off), and loss are such that a drain current (ID) of approximately 5 mA is produced. VpD +15 V Ір 5 mA Rp 1.0 kΩ VG=0V RG 10 ΜΩ - Rs 22022
