AC diode step up rectifier • Calculate the output voltage Vo2, V 04 and V06? • What is the voltage across each capacitor

Post by answerhappygod »

Ac Diode Step Up Rectifier Calculate The Output Voltage Vo2 V 04 And V06 What Is The Voltage Across Each Capacitor 1
Ac Diode Step Up Rectifier Calculate The Output Voltage Vo2 V 04 And V06 What Is The Voltage Across Each Capacitor 1 (75.21 KiB) Viewed 13 times

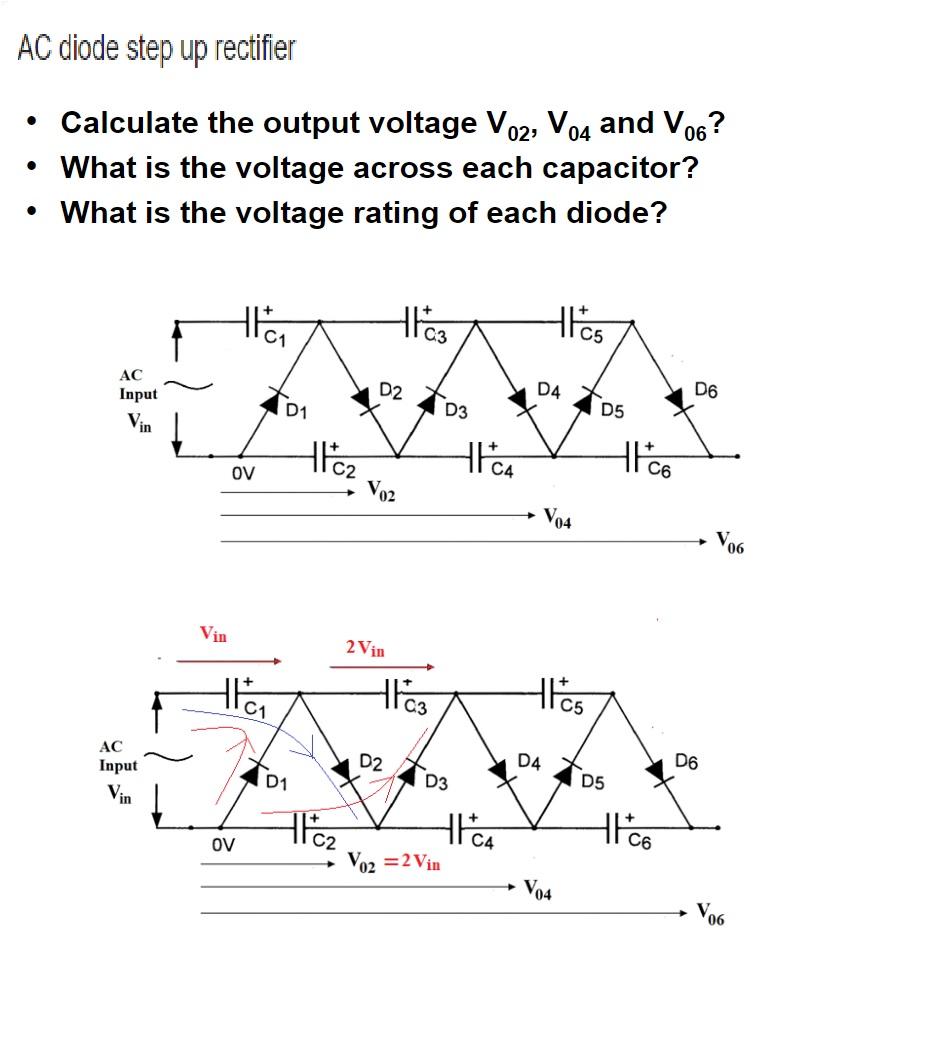

AC diode step up rectifier • Calculate the output voltage Vo2, V 04 and V06? • What is the voltage across each capacitor? • What is the voltage rating of each diode? HE Hlas Ales D2 D4 D6 AC Input Vin D1 D3 D5 HIECZ Aca HI OV V04 06 Vin 2 Vin tha HEC3 Hles AC Input D2 D4 D6 D1 D3 D5 Vin HACZ HPCA HIE OV Vo2 =2 Vin V04 Vo6
