Question 10 10 pts A power transistor has a maximum specified junction temperature T.max = 175 C. The transistor is to b

[answerhappygod]

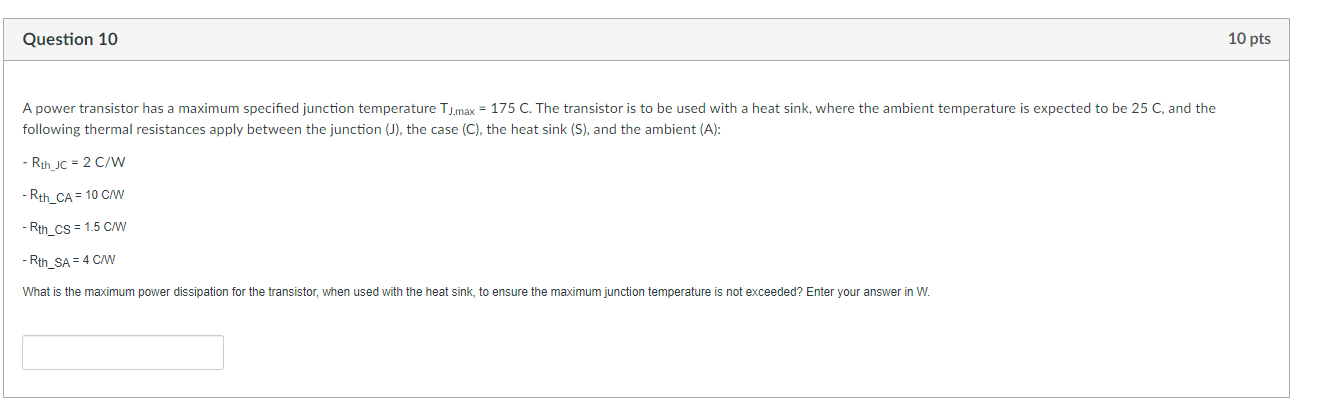

Question 10 10 Pts A Power Transistor Has A Maximum Specified Junction Temperature T Max 175 C The Transistor Is To B 1 (28.15 KiB) Viewed 11 times

Question 10 10 pts A power transistor has a maximum specified junction temperature T.max = 175 C. The transistor is to be used with a heat sink, where the ambient temperature is expected to be 25 C, and the following thermal resistances apply between the junction (), the case (C), the heat sink (S), and the ambient (A): - Rth JC = 2 C/W - Rth_CA = 10 CW - Rth_CS = 1.5 C/W - Rth_SA= 4 CW What is the maximum power dissipation for the transistor, when used with the heat sink, to ensure the maximum junction temperature is not exceeded? Enter your answer in W.
