Represent the electrical networks as shown in Figure Q.3b in state space representation. The inputs of the system is v(t

Post by answerhappygod »

Represent The Electrical Networks As Shown In Figure Q 3b In State Space Representation The Inputs Of The System Is V T 1
Represent The Electrical Networks As Shown In Figure Q 3b In State Space Representation The Inputs Of The System Is V T 1 (19.92 KiB) Viewed 21 times

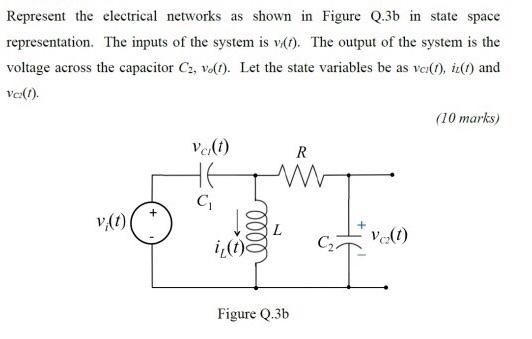

Represent the electrical networks as shown in Figure Q.3b in state space representation. The inputs of the system is v(t). The output of the system is the voltage across the capacitor Cz, valt). Let the state variables be as vci(), iz(1) and vc(!). (10 marks) Vet) R HE W C v (0) L volt) it) Figure Q.3b
