A unity feed back system whose forward transfer function is 500(s + 2)(s +5)(s + 6) G(s) s(s+8)(s + 10)(s + 12) = • Dete

Post by answerhappygod »

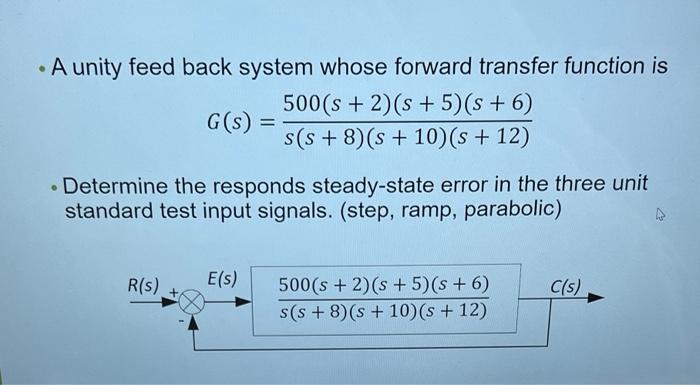

A Unity Feed Back System Whose Forward Transfer Function Is 500 S 2 S 5 S 6 G S S S 8 S 10 S 12 Dete 1
A Unity Feed Back System Whose Forward Transfer Function Is 500 S 2 S 5 S 6 G S S S 8 S 10 S 12 Dete 1 (35.37 KiB) Viewed 10 times
A unity feed back system whose forward transfer function is 500(s + 2)(s +5)(s + 6) G(s) s(s+8)(s + 10)(s + 12) = • Determine the responds steady-state error in the three unit standard test input signals. (step, ramp, parabolic) R(s) E(s) C(s) 500(s + 2)(s +5)( + 6) s(s+8)(s + 10)(s +12)
