2. For the network shown in Figure 2, (a) write the nodal voltage equations for VA and VB in matrix form by inspection,

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

2. For the network shown in Figure 2, (a) write the nodal voltage equations for VA and VB in matrix form by inspection,

Post by answerhappygod »

2 For The Network Shown In Figure 2 A Write The Nodal Voltage Equations For Va And Vb In Matrix Form By Inspection 1
2 For The Network Shown In Figure 2 A Write The Nodal Voltage Equations For Va And Vb In Matrix Form By Inspection 1 (30.06 KiB) Viewed 12 times

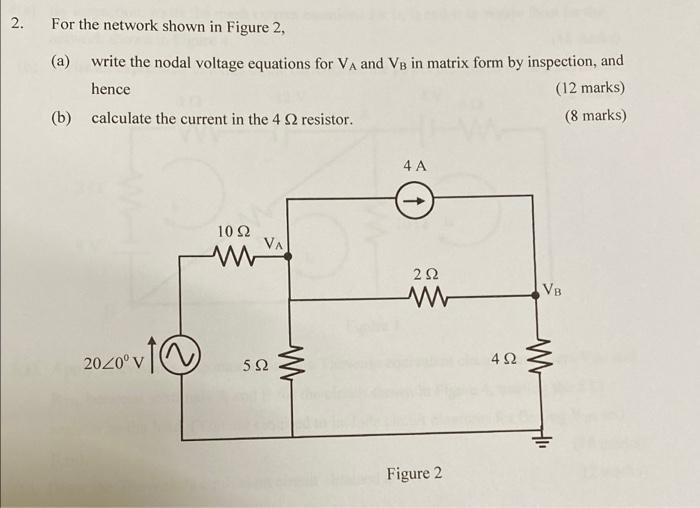

2. For the network shown in Figure 2, (a) write the nodal voltage equations for VA and VB in matrix form by inspection, and hence (12 marks) (b) calculate the current in the 42 resistor. (8 marks) 4A 102 VA mi 212 w VB 2020°v10 TO M 592 M 422 Figure 2
