A 440-V, 60-Hz, 4-pole, Delta-connected, three-phase induction motor has the following parameters in ohms/phase referred

Post by answerhappygod »

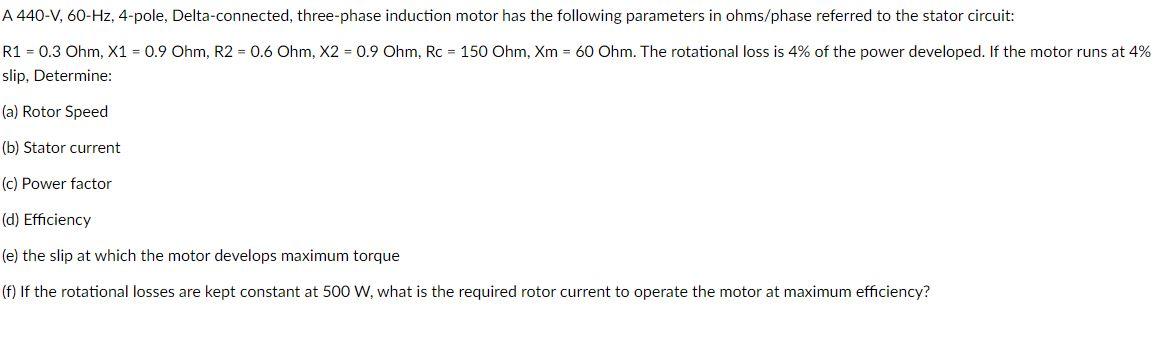

A 440 V 60 Hz 4 Pole Delta Connected Three Phase Induction Motor Has The Following Parameters In Ohms Phase Referred 1
A 440 V 60 Hz 4 Pole Delta Connected Three Phase Induction Motor Has The Following Parameters In Ohms Phase Referred 1 (41.9 KiB) Viewed 21 times
A 440-V, 60-Hz, 4-pole, Delta-connected, three-phase induction motor has the following parameters in ohms/phase referred to the stator circuit: R1 = 0.3 Ohm, X1 = 0.9 Ohm, R2 = 0.6 Ohm, X2 = 0.9 Ohm, Rc = 150 Ohm, Xm = 60 Ohm. The rotational loss is 4% of the power developed. If the motor runs at 4% slip, Determine: (a) Rotor Speed (b) Stator current (c) Power factor (d) Efficiency (e) the slip at which the motor develops maximum torque (f) If the rotational losses are kept constant at 500 W, what is the required rotor current to operate the motor at maximum efficiency?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
