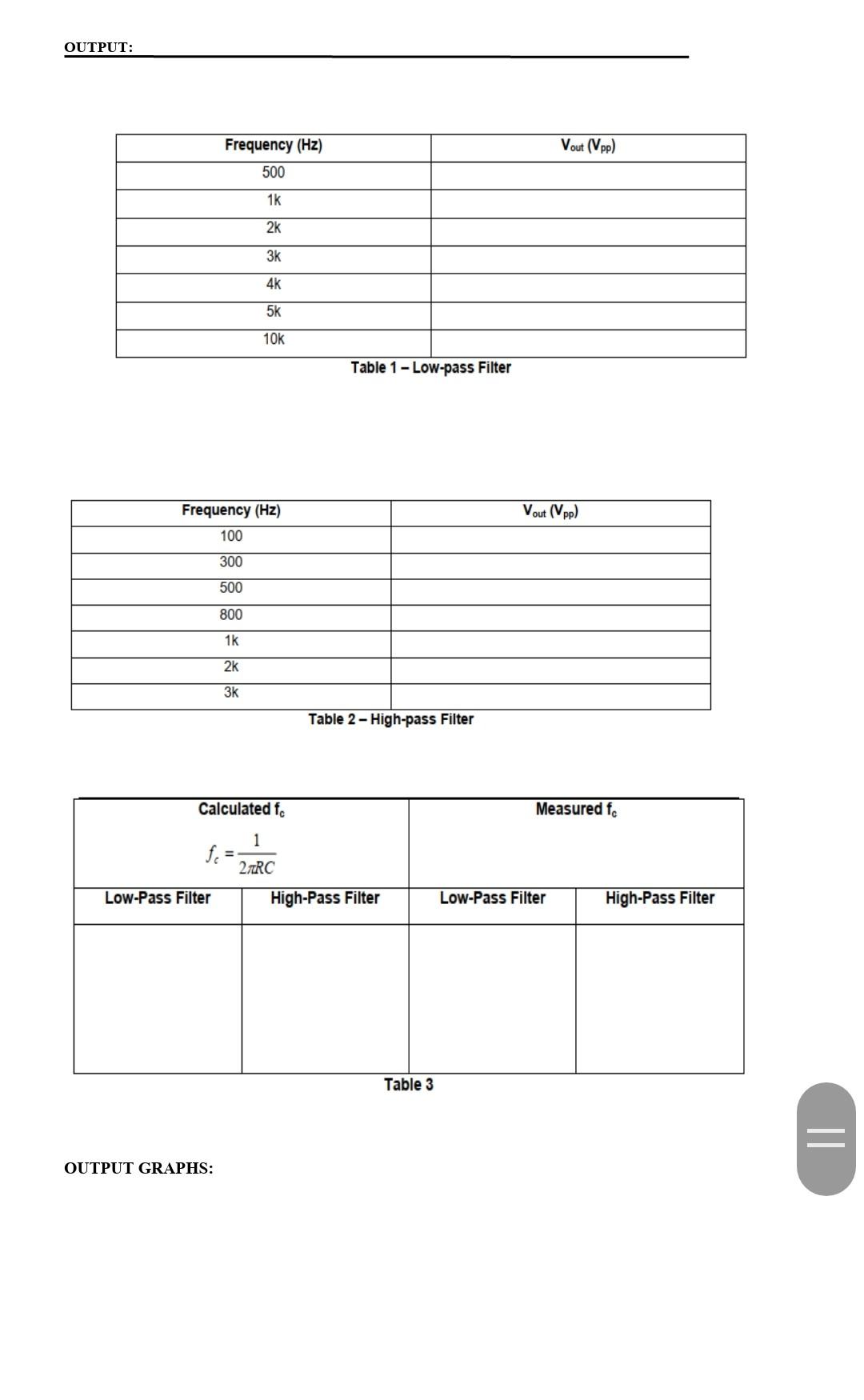

OUTPUT: Vout (Vpp) Frequency (Hz) 500 1k 2K Зk 4k 5k 10k Table 1 - Low-pass Filter Vout (Vpp) Frequency (Hz) 100 300 500 800 1k 2k Зk Table 2 - High-pass Filter Calculated fc Measured fc 1 f. = 2.7RC Low-Pass Filter High-Pass Filter Low-Pass Filter High-Pass Filter Table 3 II OUTPUT GRAPHS:
OUTPUT: Vout (Vpp) Frequency (Hz) 500 1k 2K Зk 4k 5k 10k Table 1 - Low-pass Filter Vout (Vpp) Frequency (Hz) 100 300 500 800 1k 2k Зk Table 2 - High-pass Filter Calculated fc Measured fc 1 f. = 2.7RC Low-Pass Filter High-Pass Filter Low-Pass Filter High-Pass Filter Table 3 II OUTPUT GRAPHS:

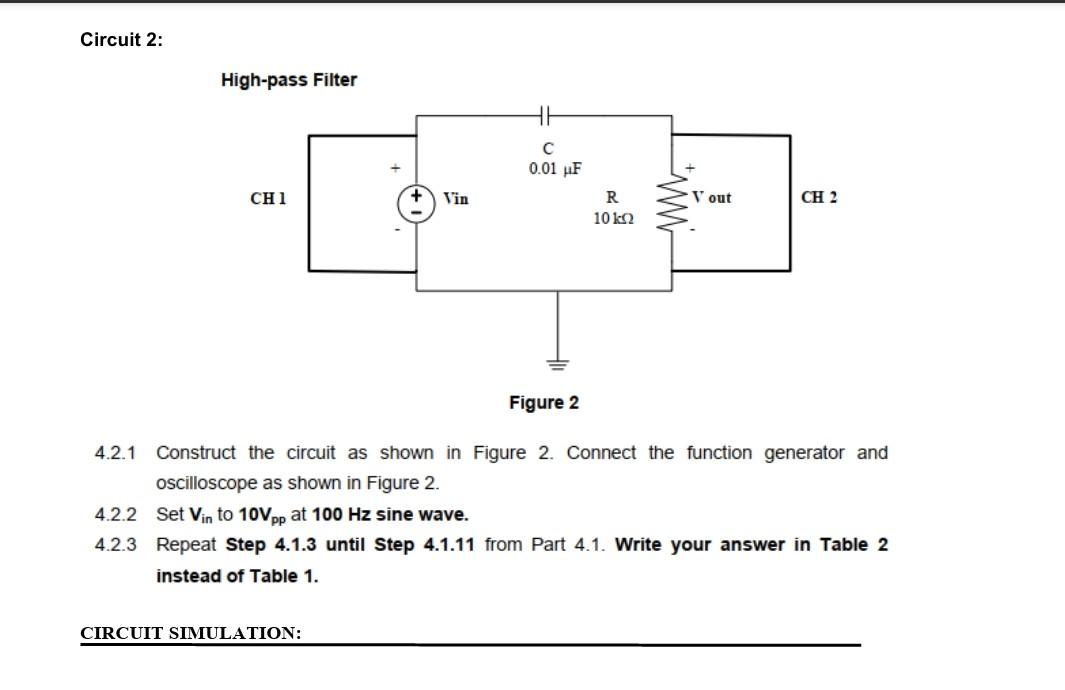

Circuit 2: High-pass Filter HE с 0.01 LF CHI Vin R 10 k2 V out CH2 W Figure 2 4.2.1 Construct the circuit as shown in Figure 2. Connect the function generator and oscilloscope as shown in Figure 2. 4.2.2 Set Vin to 10Vpp at 100 Hz sine wave. 4.2.3 Repeat Step 4.1.3 until Step 4.1.11 from Part 4.1. Write your answer in Table 2 instead of Table 1. CIRCUIT SIMULATION:
