Problem 3 A 80-MVA, 25-kV, three-phase synchronous generator has a synchronous reactance of 11.5 2 per phase and negligi

[answerhappygod]

Problem 3 A 80 Mva 25 Kv Three Phase Synchronous Generator Has A Synchronous Reactance Of 11 5 2 Per Phase And Negligi 1 (96.3 KiB) Viewed 23 times

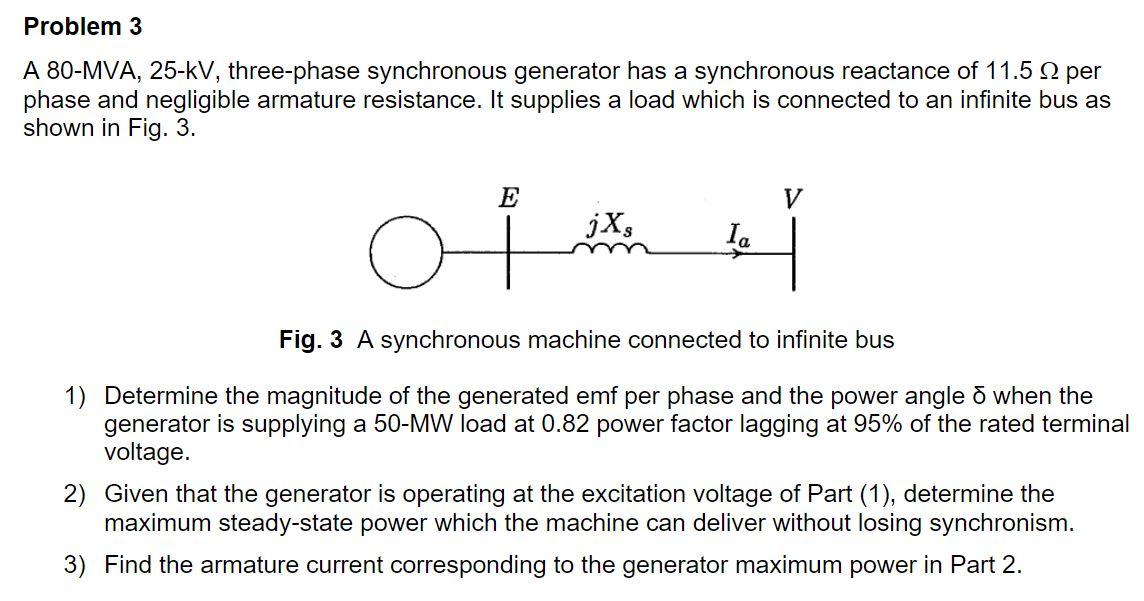

Problem 3 A 80-MVA, 25-kV, three-phase synchronous generator has a synchronous reactance of 11.5 2 per phase and negligible armature resistance. It supplies a load which is connected to an infinite bus as shown in Fig. 3. E V oia jX, la Fig. 3 A synchronous machine connected to infinite bus 1) Determine the magnitude of the generated emf per phase and the power angle 5 when the generator is supplying a 50-MW load at 0.82 power factor lagging at 95% of the rated terminal voltage. 2) Given that the generator is operating at the excitation voltage of Part (1), determine the maximum steady-state power which the machine can deliver without losing synchronism. 3) Find the armature current corresponding to the generator maximum power in Part 2.
