Problem 2 A 600-KVA, 34.5KV/6.6KV, 60-Hz, single-phase step-down transformer has a core-loss equivalent resistance of 7

[answerhappygod]

Problem 2 A 600 Kva 34 5kv 6 6kv 60 Hz Single Phase Step Down Transformer Has A Core Loss Equivalent Resistance Of 7 1 (39.56 KiB) Viewed 10 times

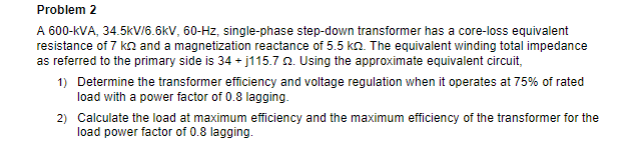

Problem 2 A 600-KVA, 34.5KV/6.6KV, 60-Hz, single-phase step-down transformer has a core-loss equivalent resistance of 7 ko and a magnetization reactance of 5.5 kn. The equivalent winding total impedance as referred to the primary side is 34 - j115.7 2. Using the approximate equivalent circuit, 1) Determine the transformer efficiency and voltage regulation when it operates at 75% of rated load with a power factor of 0.8 lagging. 2) Calculate the load at maximum efficiency and the maximum efficiency of the transformer for the load power factor of 0.8 lagging.
