0 to 120 VRMS, 8 A, 60 Hz Variac Supply 80VA, 40/80 V/V, 60 Hz Transformer

Post by answerhappygod »

0 to 120 VRMS, 8 A, 60 Hz Variac Supply
80VA, 40/80 V/V, 60 Hz Transformer
0 To 120 Vrms 8 A 60 Hz Variac Supply 80va 40 80 V V 60 Hz Transformer 1
0 To 120 Vrms 8 A 60 Hz Variac Supply 80va 40 80 V V 60 Hz Transformer 1 (41.44 KiB) Viewed 12 times

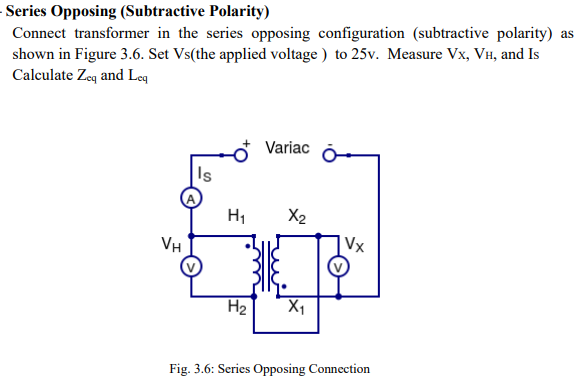

Series Opposing (Subtractive Polarity) Connect transformer in the series opposing configuration (subtractive polarity) as shown in Figure 3.6. Set Vs(the applied voltage ) to 25v. Measure Vx, VH, and Is Calculate Zeq and Leq Variac Is H1 X2 VH Vx H2 X1 Fig. 3.6: Series Opposing Connection
Calculated Values ZEQ LEQ
