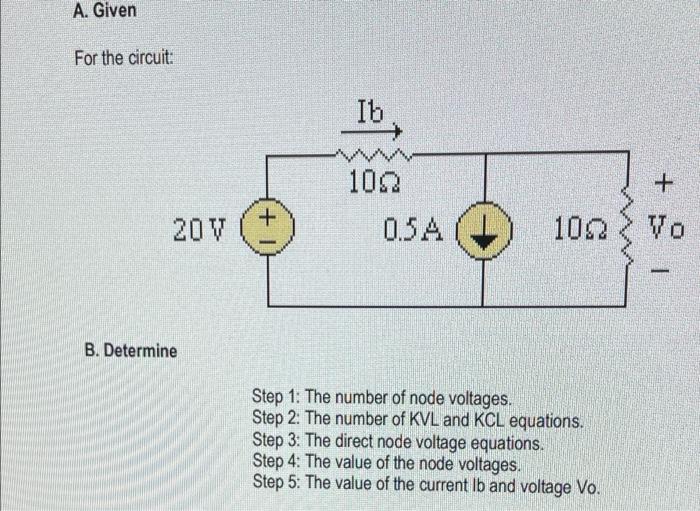

A. Given For the circuit: Ib + 102 0.5A + 20V 100 Yo 1 B. Determine Step 1: The number of node voltages. Step 2: The number of KVL and KCL equations. Step 3: The direct node voltage equations. Step 4: The value of the node voltages. Step 5: The value of the current Ib and voltage Vo.
