A. Given For the circuit: Ib w 102 0.5A + + 20V 1022 Vo h B. Determine Step 1: The number of node voltages. Step 2: The

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A. Given For the circuit: Ib w 102 0.5A + + 20V 1022 Vo h B. Determine Step 1: The number of node voltages. Step 2: The

Post by answerhappygod »

A Given For The Circuit Ib W 102 0 5a 20v 1022 Vo H B Determine Step 1 The Number Of Node Voltages Step 2 The 1
A Given For The Circuit Ib W 102 0 5a 20v 1022 Vo H B Determine Step 1 The Number Of Node Voltages Step 2 The 1 (64.43 KiB) Viewed 10 times

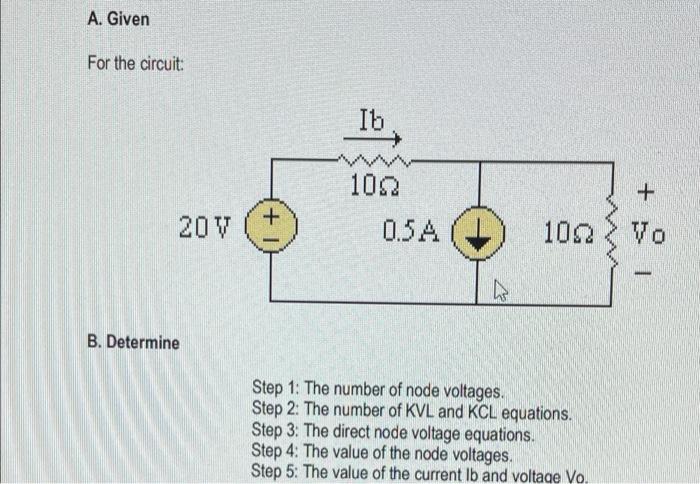

A. Given For the circuit: Ib w 102 0.5A + + 20V 1022 Vo h B. Determine Step 1: The number of node voltages. Step 2: The number of KVL and KCL equations. Step 3. The direct node voltage equations. Step 4: The value of the node voltages. Step 5: The value of the current Ib and voltage Vo.
