2. (40) In the network below, assume that Vab = 5 sin (5 10*t + )V. Address the = following, 39 i 5 nF 2.5 nF 2.4 ΚΩ Hem

Post by answerhappygod »

1
1 (49.2 KiB) Viewed 12 times
this practice exercise from a quiz I received. I think it's
about, from inductors and capacitors to op amp. please
provide full work so I may study from this. and use it as
example.

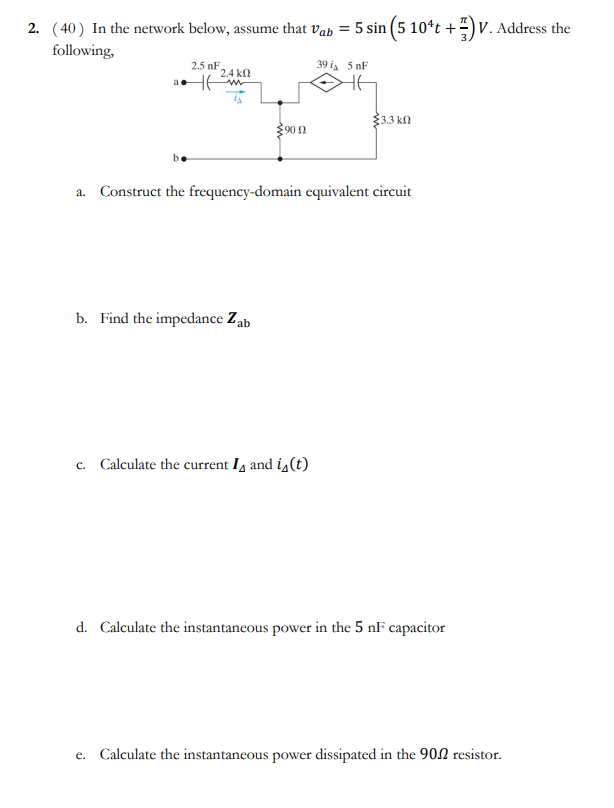

2. (40) In the network below, assume that Vab = 5 sin (5 10*t + )V. Address the = following, 39 i 5 nF 2.5 nF 2.4 ΚΩ Hem 33.3 ko 3900 a. a. Construct the frequency-domain equivalent circuit b. Find the impedance Zab c. Calculate the current Is and ist) d. Calculate the instantaneous power in the 5 nF capacitor e. Calculate the instantaneous power dissipated in the 901 resistor.
