1. (30) Assume that the output of the op-amp circuit shown, is connected to a 28 k2 load (note: this load is not drawn i

[answerhappygod]

1 30 Assume That The Output Of The Op Amp Circuit Shown Is Connected To A 28 K2 Load Note This Load Is Not Drawn I 1 (60.06 KiB) Viewed 13 times

this practice exercise from a practice quiz, is from
chapter 5: Operational Amplifier.
please provide all steps, It will be a great help.

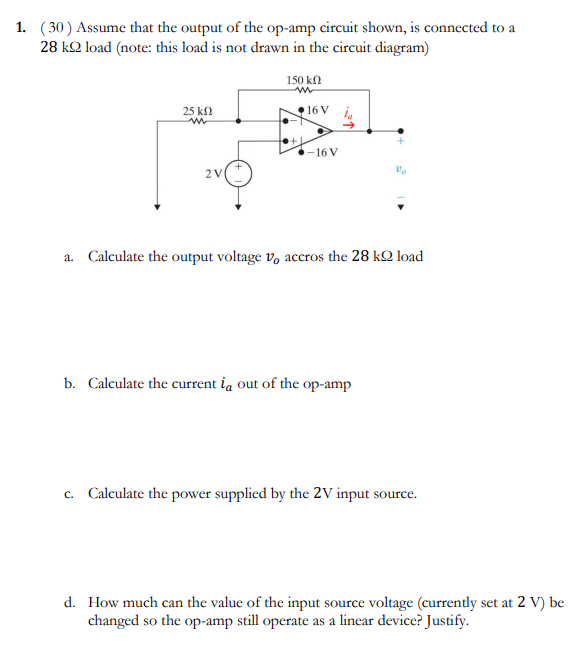

1. (30) Assume that the output of the op-amp circuit shown, is connected to a 28 k2 load (note: this load is not drawn in the circuit diagram) 150 ΚΩ w • 16 V 25 ΚΩ w i -16V 2 V a. Calculate the output voltage V, accros the 28 ko load b. Calculate the current ia out of the op-amp c. Calculate the power supplied by the 2V input source. d. How much can the value of the input source voltage (currently set at 2 V) be changed so the op-amp still operate as a linear device? Justify.
