Consider the following unity feedback system: R(S) + C(s) K(s + 1) s2 + 5s + 17.33 The approximate angles of departure o

Post by answerhappygod »

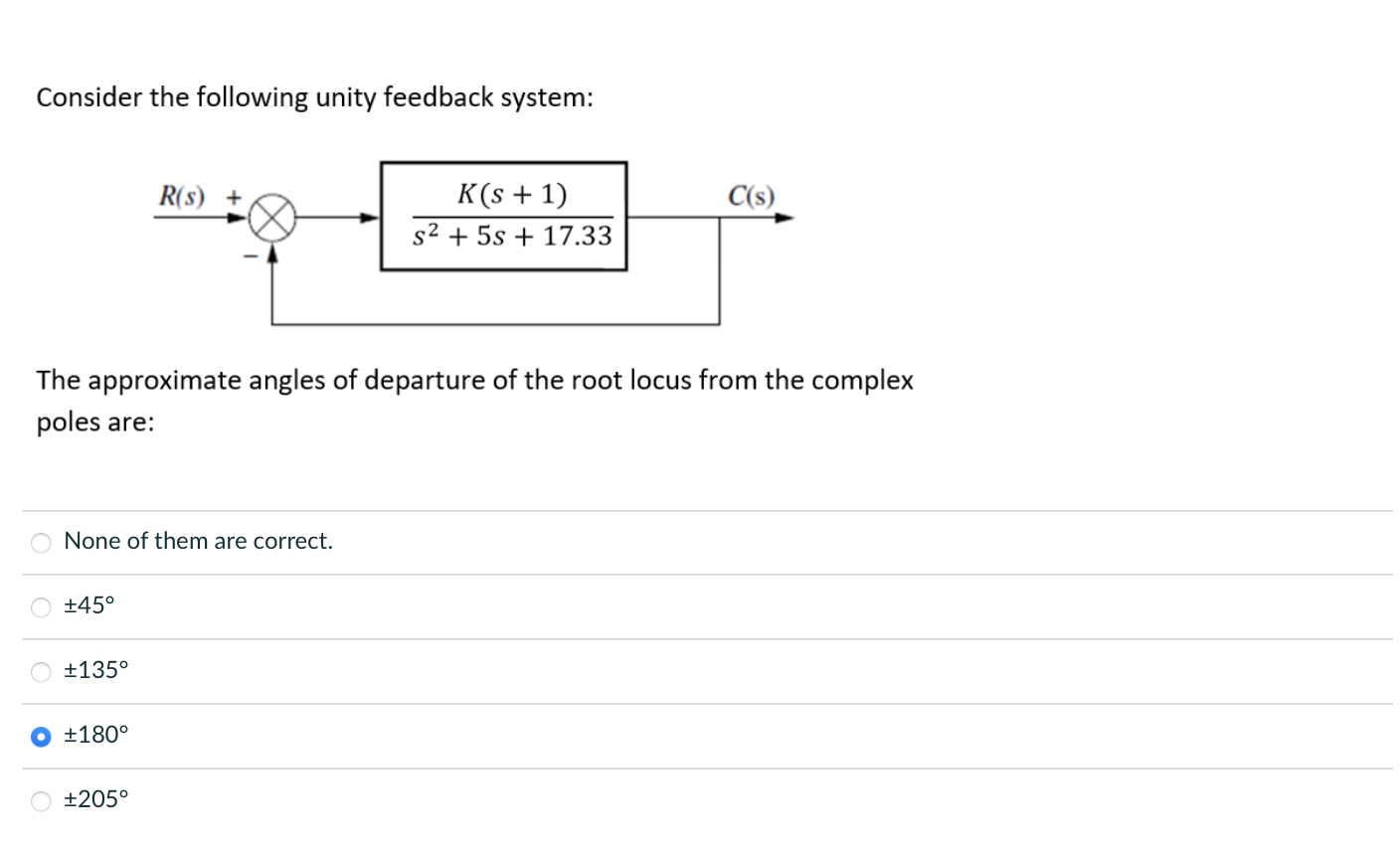

Consider The Following Unity Feedback System R S C S K S 1 S2 5s 17 33 The Approximate Angles Of Departure O 1
Consider The Following Unity Feedback System R S C S K S 1 S2 5s 17 33 The Approximate Angles Of Departure O 1 (76.04 KiB) Viewed 29 times
Consider the following unity feedback system: R(S) + C(s) K(s + 1) s2 + 5s + 17.33 The approximate angles of departure of the root locus from the complex poles are: None of them are correct. +45° +135° +180° +205°
