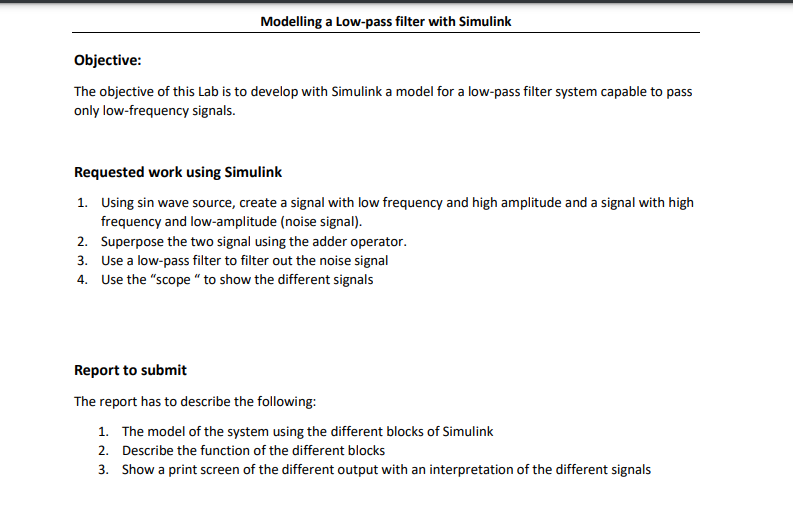

Modelling a low-pass filter with Simulink Objective: The objective of this Lab is to develop with Simulink a model for a low-pass filter system capable to pass only low-frequency signals. Requested work using Simulink 1. Using sin wave source, create a signal with low frequency and high amplitude and a signal with high frequency and low-amplitude (noise signal). 2. Superpose the two signal using the adder operator. 3. Use a low-pass filter to filter out the noise signal 4. Use the "scope" to show the different signals Report to submit The report has to describe the following: 1. The model of the system using the different blocks of Simulink 2. Describe the function of the different blocks 3. Show a print screen of the different output with an interpretation of the different signals
